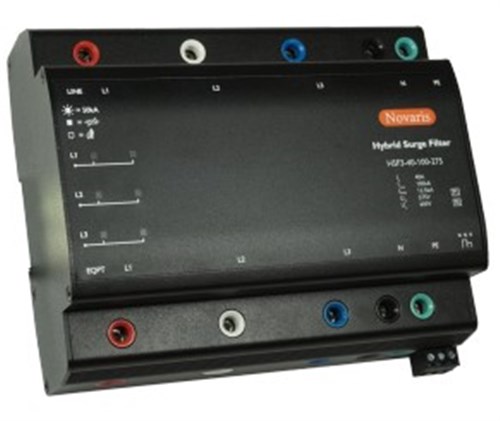

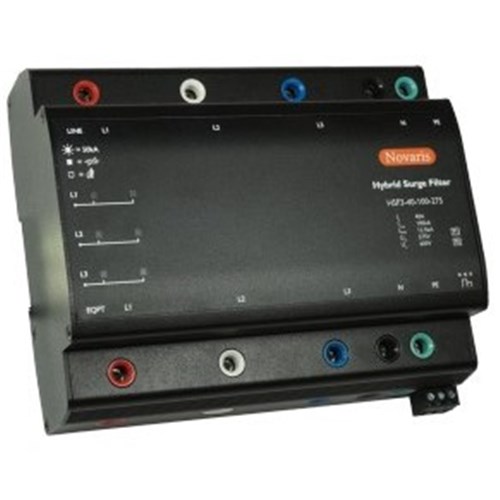

Novaris HSF3-40-100-275 Hybrid Surge Filter 12.5kA 15kA 3 PH 40A 230VAC TS35 Aluminium IP20

Product Code: HSF3-40-100-275

  • 3-phase surge filter for robust protection
  • LED display for power and thermal alerts
  • Easy TS35 DIN rail mounting
  • Complies with IEC, AS/NZS, UL standards
  • Fast response time under 100 ns
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Filter
Brand
Novaris
Series
HSF3
Application
Critical installations, sensitive electronics and computer equipment

Electrical

Lightning Impulse Current Iimp (10/350µs)
12.5kA (L-N)15kA (N-PE)
Max. Backup Fuse
40A
No. of Poles (Total)
3
Nominal Voltage
230V
Voltage Protection Level Up
<650V
Max. Discharge Current Imax (8/20µs)
100kA
Alarm Contact
SPDT
Nominal Discharge Current Inom (8/20µs)
40kA (L-N)50kA (N-PE)
Max. Continuous Operating Voltage
480 VAC (L-N)255 VAC (N-PE)

Mechanical

Terminal Size
Terminal capacity - power 16mm²Terminal capacity - alarms 2.5mm²

Dimensions & Physical Data

Depth
69mm
Height
141mm
Width
172mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20
