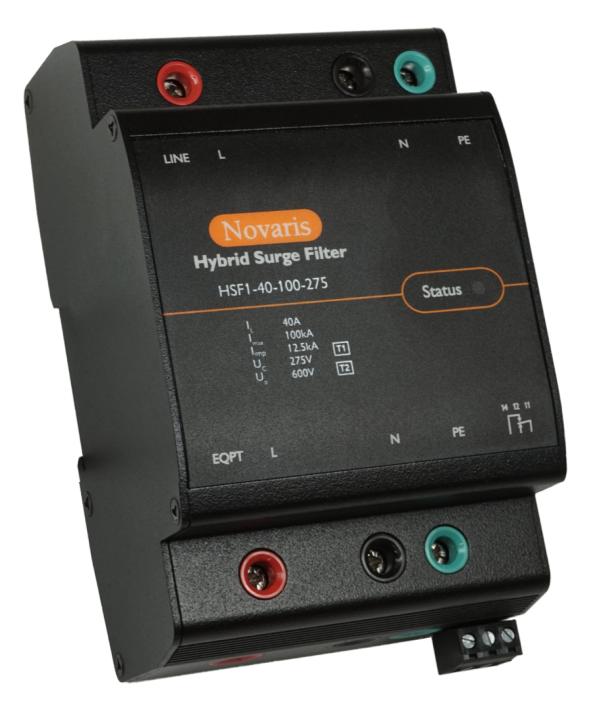

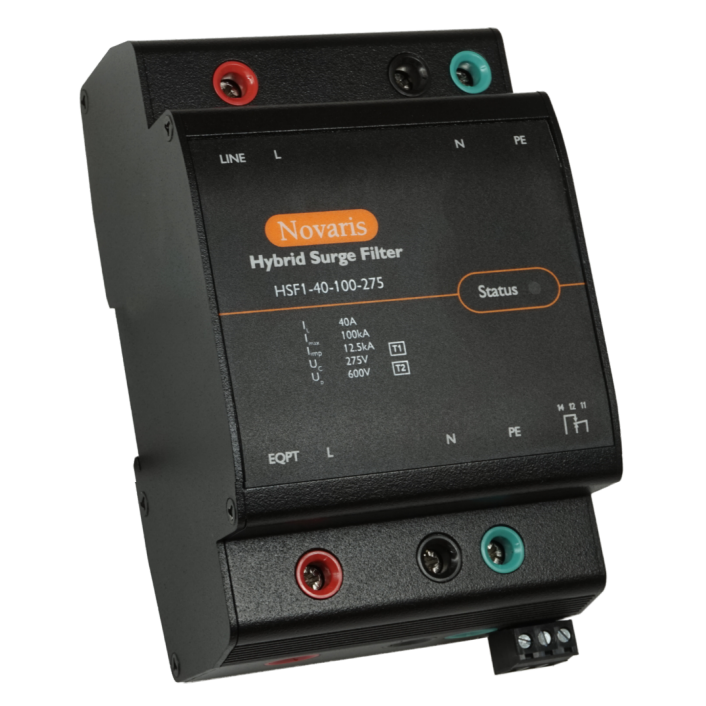

Novaris HSF1-40-100-275 Hybrid Surge Filter 12.5kA 15kA 1 PH 40A 230VAC TS35 Aluminium IP20

Product Code: HSF1-40-100-275

  • Surge filter for single-phase 230 VAC
  • LED display for power & thermal alerts
  • Compact design: 90x141x69 mm, IP20 rated
  • Quick response time: <100 ns (N-PE)
  • Complies with IEC, AS/NZS, UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Hybrid Surge Filter
Brand
Novaris
Series
HSF1
Application
Power, Control Cabinets and Final Sub Boards

Electrical

Lightning Impulse Current Iimp (10/350µs)
12.5kA
Max. Backup Fuse
40A
Nominal Voltage
230V AC
Voltage Protection Level Up
650V
Max. Discharge Current Imax (8/20µs)
100kA
Short Circuit Current Rating
50kA
Alarm Contact
SPDT power and thermal failure
Nominal Discharge Current Inom (8/20µs)
40kA
Max. Continuous Operating Voltage
480 V AC

Mechanical

Terminal Size
16 mm2

Dimensions & Physical Data

Depth
141mm
Height
69mm
Width
90mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
