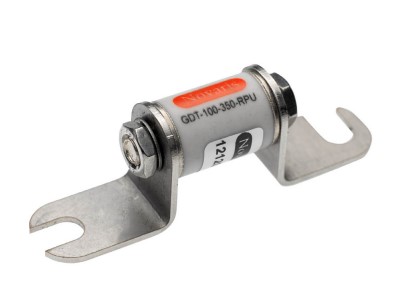

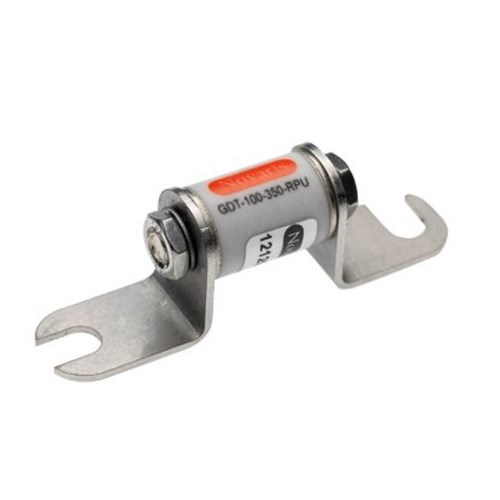

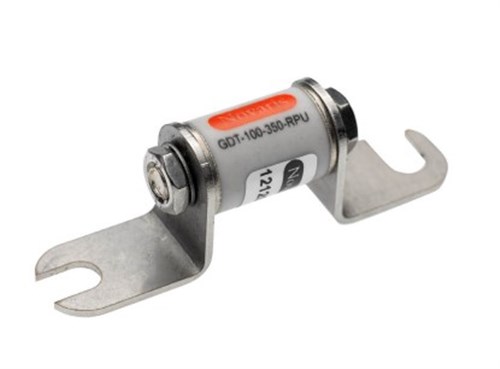

Novaris GDT-100-350-RPU GDT Surge Protector 100kA 350VDC Shunt IP60

Product Code: GDT-100-350-RPU

  • Protects signal lines up to 350 VDC
  • Handles current surges up to 100 kA
  • Compact design: 72x16x25 mm
  • Operates in -40 to 75°C environments
  • Complies with AS/NZS, IEEE, BS standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Track Circuit Surge Protectors
Brand
Novaris
Series
GDT-100

Electrical

Lightning Impulse Current Iimp (10/350µs)
30kA
DC Sparkover Voltage
0.35kV
Voltage Protection Level Up
800V
Max. Discharge Current Imax (8/20µs)
150kA
Nominal Discharge Current Inom (8/20µs)
100kA

Dimensions & Physical Data

Depth
25mm
Height
16mm
Width
72mm

Environmental

Operating Temperature
-40°C to 65°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
