Product Code: EC20-350

Supports up to 350 VDC, ensuring reliable performance.
Handles high current with a rating of 20 kA.
IP65 protection for dust and water resistance.
Compact design with dimensions of 20mm x 60mm.
Operates in temperatures from -40 to 70°C.

Specifications

General

Product Type

Earth Clamp

Brand

Novaris

Series

EC20 Earth Clamps

Mechanical

Housing Material

PVC, grey pvc finish

Dimensions & Physical Data

Length

134.6 mm

Weight

120g

Width

20 mm (width/diameter)

Environmental

Operating Temperature

-40 to 70 °C

IP Rating

IP65

Safety, Standards & Compliance

Standards and Approvals

IEC 61643-11 (SPD connected to low-voltage power systems - Type 2, 3); AS 1768 (AC power system SPD - Cat B, A); IEEE 62.41.2 (Low voltage SPD - Cat B)

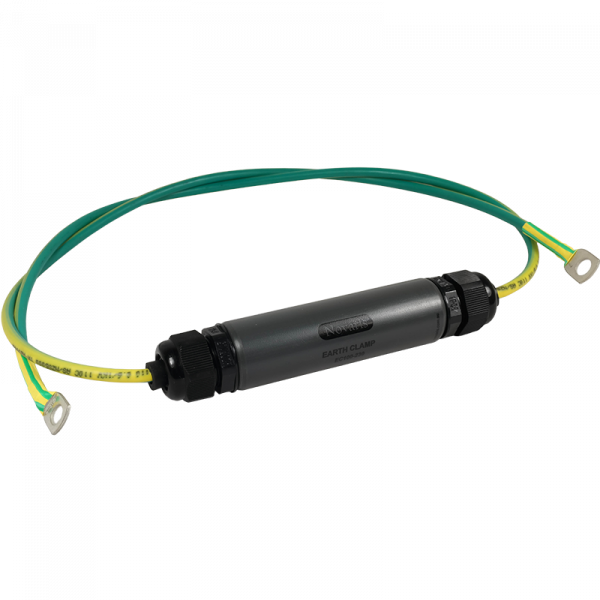

Novaris EC20-350 Earth Clamp 20kA 350VDC 6sq-mm Flying Leads 20mm W 60mm H IP65

Product Code: EC20-350
