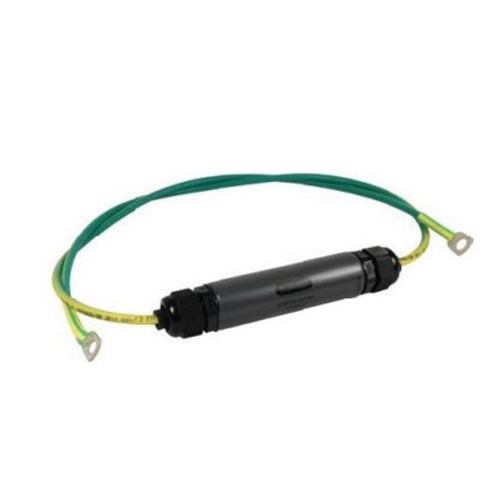

Novaris EC100-350 Earth Clamp 100kA 350VDC 10sq-mm Flying Leads 30mm W 100mm H IP65

Product Code: EC100-350

  • Rated for 350 VDC and 100 kA current
  • IP65 protection for dust & water resistance
  • Compact size: 30 mm width, 100 mm height
  • Operates in -40 to 70°C temperature range
  • Low capacitance of <4 pF
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Earth Clamp
Brand
Novaris
Series
EC100 Earth Clamps

Mechanical

Housing Material
PVC, grey pvc finish

Dimensions & Physical Data

Length
100mm
Weight
0.247kg
Width
30mm (width/diameter)

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP65

Safety, Standards & Compliance

Standards and Approvals
IEC 61643-11 (SPD connected to low-voltage power systems - Type 2, 3); AS 1768 (AC power system SPD - Cat B, A); IEEE 62.41.2 (Low voltage SPD - Cat B)

Documents

IPD Product Catalogue V17
