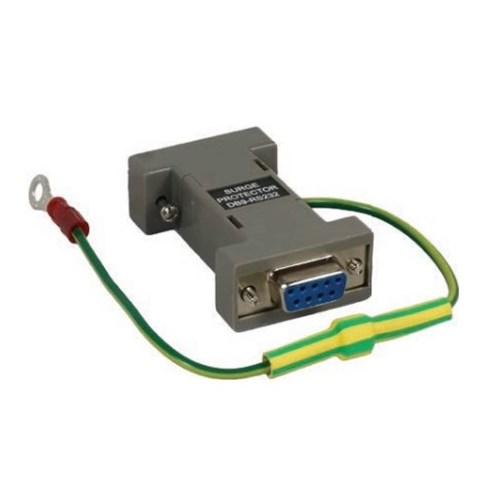

Novaris DB9-RS232 Serial Port Protector 10kA (L-E) 36V Female Male 34mm W 63mm D 17mm H IP20

Product Code: DB9-RS232

  • Compact size: 34mm W x 17mm H x 63mm D
  • Handles up to 10 kA (L-E) current
  • Operates in -40 to 85°C range
  • Complies with IEC61643-21, ITU-T K.44 standards
  • RS232 communication interface
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Rs Serial Port Protectors
Brand
Novaris
Series
DB
Application
Signal, Network and CCTV

Electrical

No. of Lines/Pairs
8
Voltage Protection Level Up
45V
Max. Discharge Current Imax (8/20µs)
0.25kA
Max. Continuous Operating Voltage
25 V AC / 36 V DC

Dimensions & Physical Data

Depth
63mm
Height
17mm
Width
34mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
