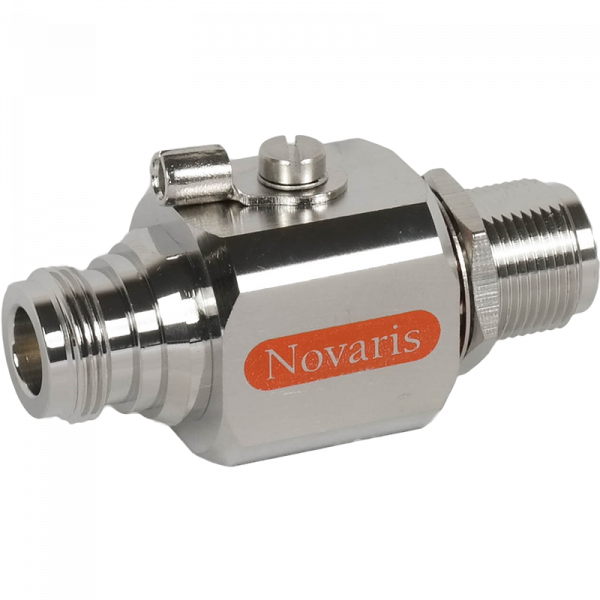

Novaris CU-MF-90-3 UHF RF Protector 20kA 50kA 90VDC 3GHz U-Type Female Male 25mm H IP55

Product Code: CU-MF-90-3

  • Rated for 20 kA and 50 kA current protection
  • IP55 protection for dust and water resistance
  • Operates in extreme temperatures from -40 to 85°C
  • Complies with IEC61643-21, UL497B standards
  • Compact size: 25 mm width, height; 57 mm depth
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Rf Equipment Protection Up To 3Ghz
Brand
Novaris
Series
CU
Application
Signal, RF Protection

Electrical

Max. Working Frequency
3 GHz
Power Rating
25W
Sparkover Voltage
0.09kV DC
Voltage Protection Level Up
650V
Max. Discharge Current Imax (8/20µs)
20kA

Mechanical

Connection Orientation
M/F
Connection/Termination
UHF

Dimensions & Physical Data

Depth
61mm
Height
25mm
Width
25mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP55

Documents

IPD Product Catalogue V17
