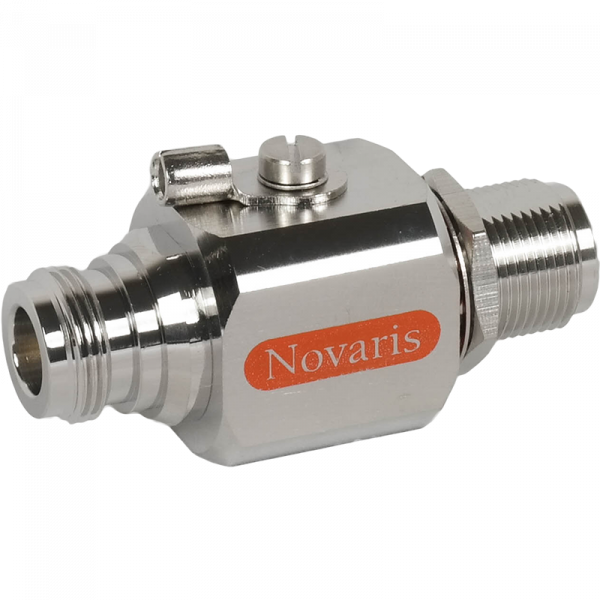

Novaris CU-MF-350-3 UHF RF Protector 20kA 50kA 350VDC 3GHz U-Type Female Male 25mm H IP55

Product Code: CU-MF-350-3

  • Surge protection with 20 kA, 50 kA current rating
  • IP55 rated for robust environmental protection
  • Operates in extreme temps from -40 to 85°C
  • Complies with IEC61643-21, UL497B standards
  • Compact design: 25x25x57 mm dimensions
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Rf Equipment Protection Up To 3Ghz
Brand
Novaris
Series
CU
Application
Signal, RF Protection

Electrical

Max. Working Frequency
3 GHz
Power Rating
350W
Sparkover Voltage
0.35kV DC
Voltage Protection Level Up
1100V
Max. Discharge Current Imax (8/20µs)
20kA

Mechanical

Connection Orientation
M/F
Connection/Termination
UHF

Dimensions & Physical Data

Depth
61mm
Height
25mm
Width
25mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP55

Documents

IPD Product Catalogue V17
