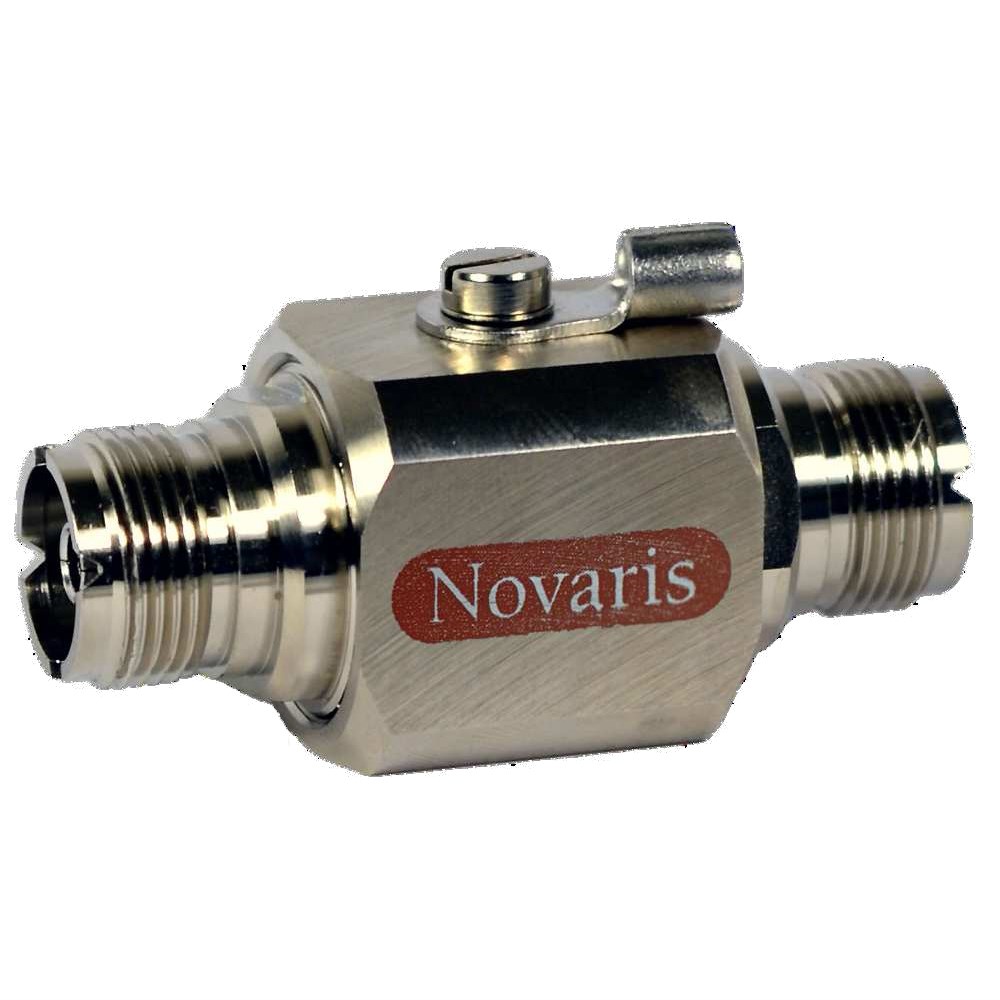

Novaris CU-FF-600-3 UHF RF Protector 20kA 50kA 600VDC 3GHz U-Type Female 25mm W 57mm D 25mm H Brass Nickel Plated IP55

Product Code: CU-FF-600-3

  • Surge protection up to 50 kA
  • IP55 rated for dust and water resistance
  • Operates in -40 to 85°C temperature range
  • Complies with IEC61643-21, UL497B standards
  • Compact size: 25x25x57 mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Rf Equipment Protection Up To 3Ghz
Brand
Novaris
Series
CU
Application
Signal, RF Protection

Electrical

Max. Working Frequency
3 GHz
Power Rating
1000W
Sparkover Voltage
0.6kV DC
Voltage Protection Level Up
1300V
Max. Discharge Current Imax (8/20µs)
20kA

Mechanical

Connection Orientation
F/F
Connection/Termination
UHF

Dimensions & Physical Data

Depth
57mm
Height
25mm
Width
25mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP55

Documents

IPD Product Catalogue V17
