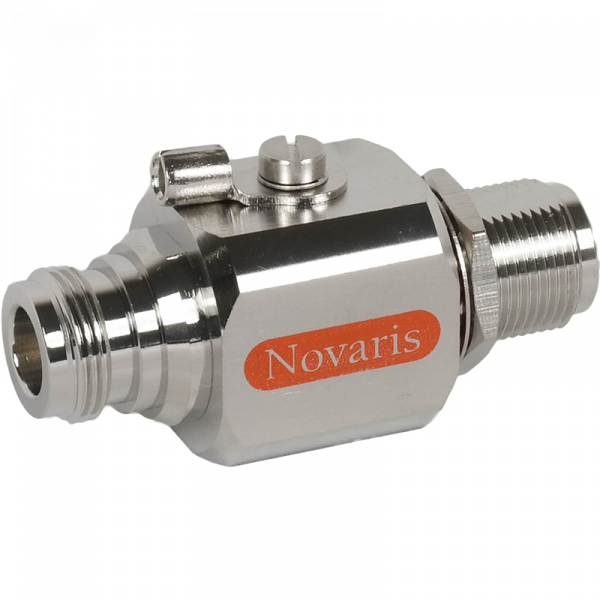

Novaris CU-FF-1000-3 UHF RF Protector 20kA 50kA 1000VDC 3GHz U-Type Female 25mm H IP55

Product Code: CU-FF-1000-3

  • Surge protection for 1000 VDC systems
  • Handles currents of 20 kA and 50 kA
  • IP55 rated for dust and water resistance
  • Operates in extreme temps from -40 to 85°C
  • Complies with IEC, UL, ITU-T, AS/NZS standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Rf Equipment Protection Up To 3Ghz
Brand
Novaris
Series
CU
Application
Signal, RF Protection

Electrical

Max. Working Frequency
3 GHz
Power Rating
2500W
Sparkover Voltage
1kV DC
Voltage Protection Level Up
1800V
Max. Discharge Current Imax (8/20µs)
20kA

Mechanical

Connection Orientation
F/F
Connection/Termination
UHF

Dimensions & Physical Data

Depth
57mm
Height
25mm
Width
25mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP55

Documents

IPD Product Catalogue V17
