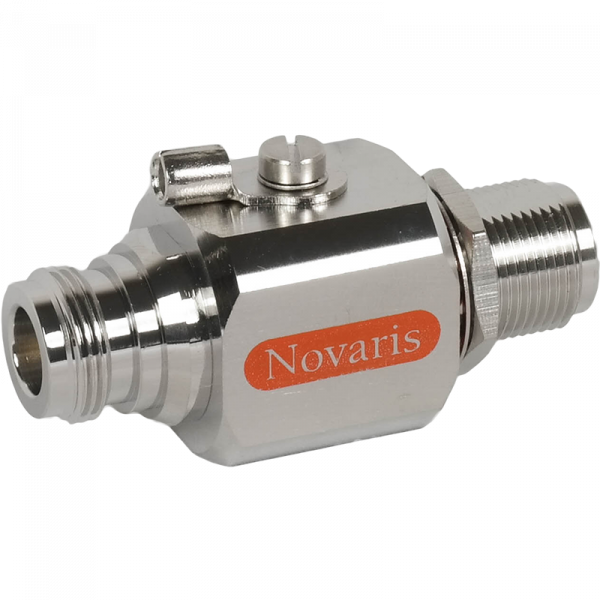

Novaris CT-MF-90-3 RF Equipment Protection 20kA 90VDC 3 GHz 25mm W 25mm H Brass Nickel Plated

Product Code: CT-MF-90-3

  • Surge protector for 90 VDC systems
  • Handles current up to 20 kA
  • Compact size: 25 mm width and height
  • Operates in -40 to 85°C temperature range
  • Made from nickel-plated brass
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Rf Equipment Protection Up To 3Ghz
Brand
Novaris
Series
CT
Application
Signal, RF Protection

Electrical

Max. Working Frequency
3 GHz
Power Rating
25W
Sparkover Voltage
0.09kV DC
Voltage Protection Level Up
650V
Max. Discharge Current Imax (8/20µs)
20kA

Mechanical

Connection Orientation
M/F
Connection/Termination
TNC

Dimensions & Physical Data

Depth
54mm
Height
21mm
Width
21mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
