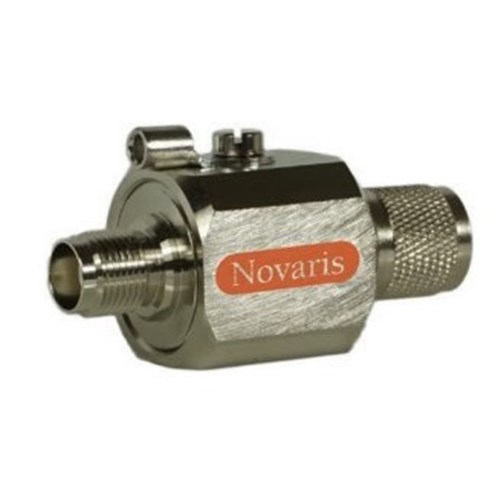

Novaris CT-FF-90-3 RF Equipment Protection 20kA 90VDC 3 GHz TNC Female 54mm W 25mm H

Product Code: CT-FF-90-3

  • Protects signal lines up to 90 VDC
  • Handles surge currents of 20 kA
  • Compact size: 54 mm width, 25 mm height
  • Operates in -40 to 85°C environments
  • Complies with IEC61643-21, UL497B standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Rf Equipment Protection Up To 3Ghz
Brand
Novaris
Series
CT
Application
Signal, RF Protection

Electrical

Max. Working Frequency
3 GHz
Power Rating
25W
Sparkover Voltage
0.09kV DC
Voltage Protection Level Up
650V
Max. Discharge Current Imax (8/20µs)
20kA

Mechanical

Connection Orientation
F/F
Connection/Termination
TNC

Dimensions & Physical Data

Depth
52mm
Height
25mm
Width
25mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP67
