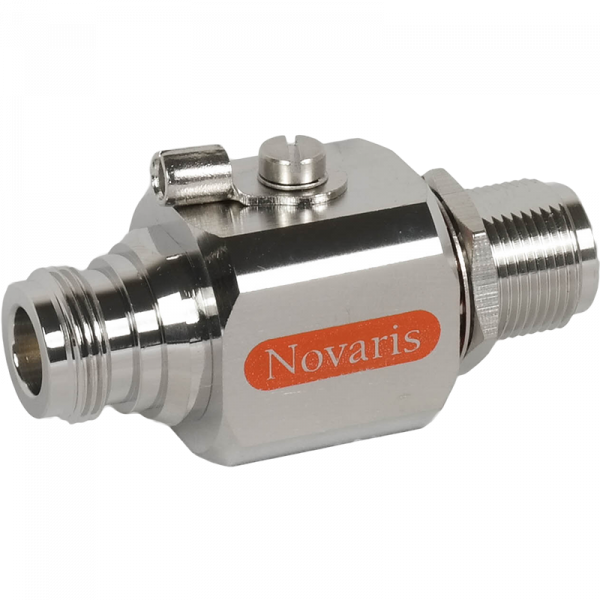

Novaris CT-FF-230-3 RF Equipment Protection 20kA 230VDC 3GHz 25mm W 54mm D 25mm H Brass Nickel Plated IP55

Product Code: CT-FF-230-3

  • Surge protector for 230 VDC systems
  • Rated current up to 20 kA
  • Compact size: 25x25x54 mm
  • Operates in -40 to 85°C range
  • IP55 protection rating
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Rf Equipment Protection Up To 3Ghz
Brand
Novaris
Series
CT
Application
Signal, RF Protection

Electrical

Max. Working Frequency
3 GHz
Power Rating
150W
Sparkover Voltage
0.23kV DC
Voltage Protection Level Up
820V
Max. Discharge Current Imax (8/20µs)
20kA

Mechanical

Connection Orientation
F/F
Connection/Termination
TNC

Dimensions & Physical Data

Depth
52mm
Height
25mm
Width
25mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
