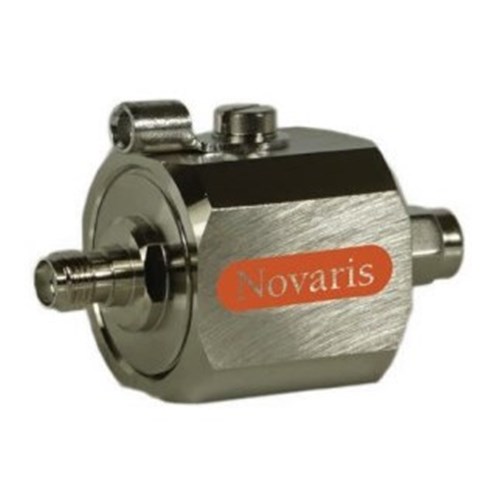

Novaris CS-MF-90-3 RF Protector 20kA 50kA 90VDC 3GHz S-Type Female Male 25mm W 54mm D 25mm H Brass Nickel Plated IP55

Product Code: CS-MF-90-3

  • Protects signal lines with 90 VDC rating
  • Handles currents of 20 kA, 50 kA
  • Compact size: 25x25x54 mm
  • Operates in -40 to 85°C range
  • IP55 protection for durability
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Rf Equipment Protection Up To 3Ghz
Brand
Novaris
Series
CS
Application
Signal, RF Protection

Electrical

Max. Working Frequency
3 GHz
Power Rating
25W
Sparkover Voltage
0.09kV DC
Voltage Protection Level Up
650V
Max. Discharge Current Imax (8/20µs)
20kA

Mechanical

Connection Orientation
M/F
Connection/Termination
S-Type

Dimensions & Physical Data

Depth
49mm
Height
25mm
Width
25mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
