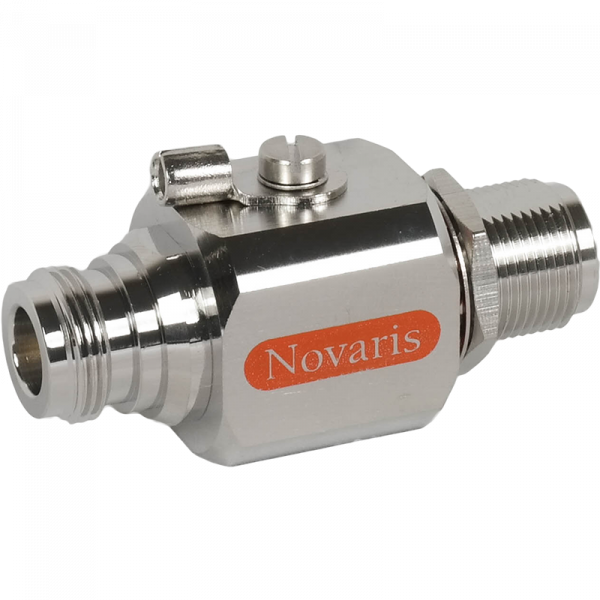

Novaris CS-MF-230-3 RF Protector 20kA 50kA 230VDC 3GHz S-Type Female Male 25mm H IP55

Product Code: CS-MF-230-3

  • Handles 20 kA and 50 kA surge currents
  • Operates at -40 to 85°C, IP55 rated
  • Compact size: 25x25x54 mm
  • Complies with IEC61643-21, UL497B standards
  • Low capacitance <1 pF for minimal signal loss
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Rf Equipment Protector
Brand
Novaris
Series
CS
Application
Signal, RF Protection

Electrical

Max. Working Frequency
3 GHz
Power Rating
150W
Sparkover Voltage
0.23kV DC
Voltage Protection Level Up
820V
Max. Discharge Current Imax (8/20µs)
20kA

Mechanical

Connection Orientation
M/F
Connection/Termination
S-Type

Dimensions & Physical Data

Depth
49mm
Height
25mm
Width
25mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
