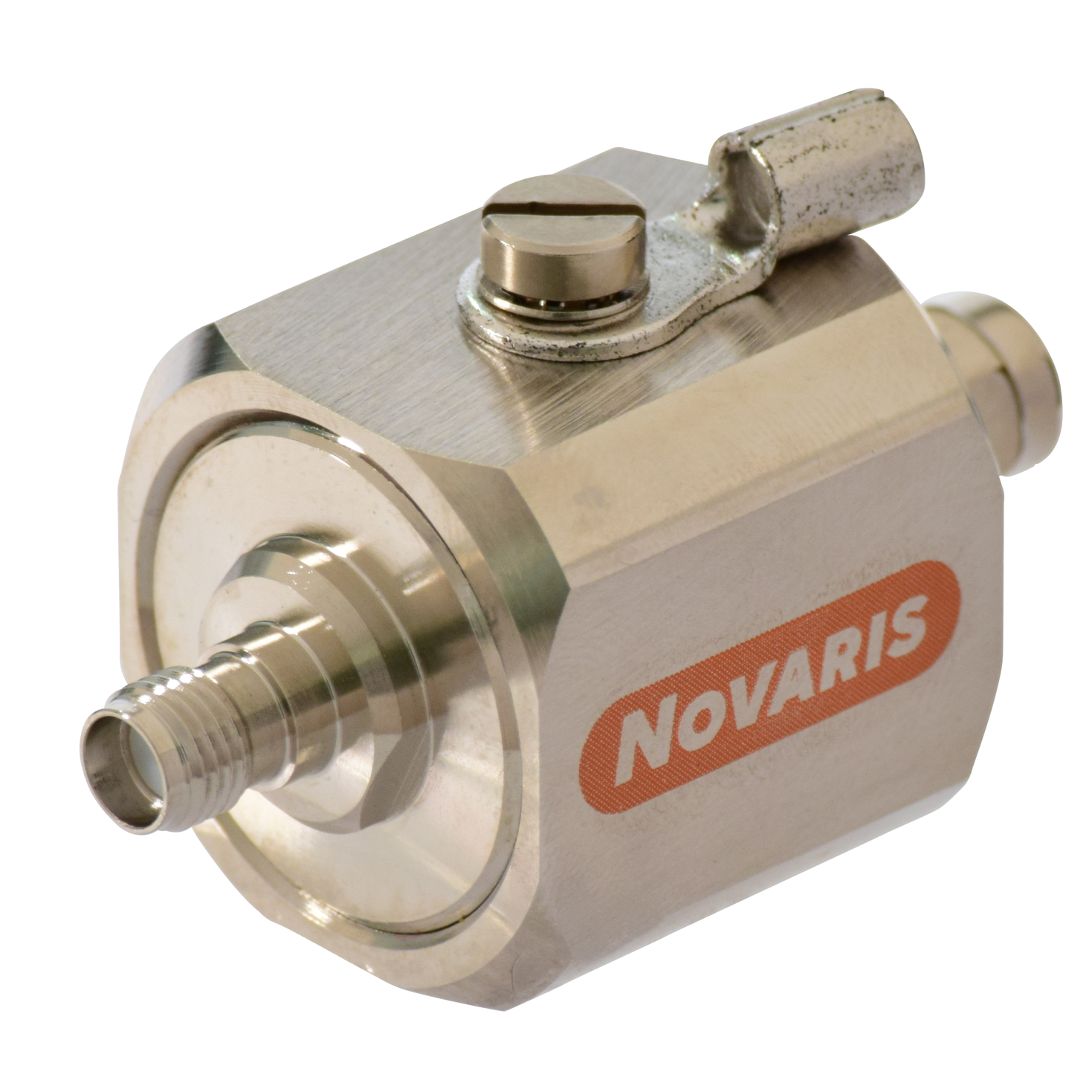

Novaris CS-MF-230-3-M Surge Protector 20kA 230VDC 3GHz 90deg Mount Bracket Mount Brass IP67

Product Code: CS-MF-230-3-M

  • Rated for 230 VDC, 20 kA current
  • IP67 protection for harsh conditions
  • Compact size: 25x25x49 mm
  • Operates from -40 to 70°C
  • Complies with IEC and AS standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Rf Equipment Protector
Brand
Novaris
Series
CS
Application
Signal, RF Protection

Electrical

Max. Working Frequency
3 GHz
Power Rating
150W
Sparkover Voltage
0.23kV DC
Voltage Protection Level Up
820V
Max. Discharge Current Imax (8/20µs)
20kA

Mechanical

Connection Orientation
M/F
Connection/Termination
S-Type

Dimensions & Physical Data

Depth
49mm
Height
25mm
Width
25mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP67
