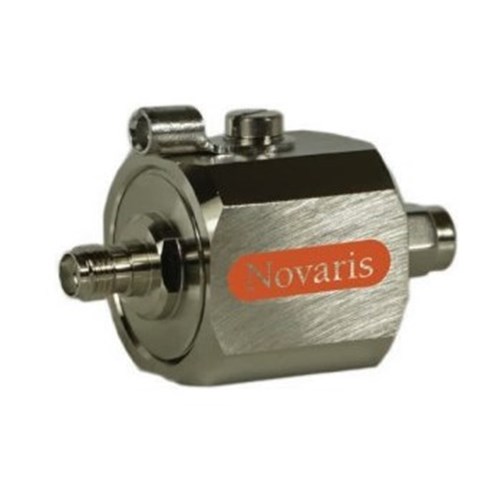

Novaris CS-FF-90-3 SMA RF Protector 20kA 50kA 90VDC 3GHz S-Type Female 25mm W 54mm D 25mm H Brass Nickel Plated IP55

Product Code: CS-FF-90-3

  • Protects signal lines with 90 VDC rating
  • Handles currents up to 50 kA
  • Compact size: 25x25x54 mm
  • Operates in -40 to 85°C range
  • Complies with IEC, UL, ITU-T standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Rf Equipment Protector
Brand
Novaris
Series
CS
Application
Signal, RF Protection

Electrical

Max. Working Frequency
3 GHz
Power Rating
25W
Sparkover Voltage
0.09kV DC
Voltage Protection Level Up
650V
Max. Discharge Current Imax (8/20µs)
20kA

Mechanical

Connection Orientation
F/F
Connection/Termination
S-type

Dimensions & Physical Data

Depth
48mm
Height
50mm
Width
25mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
