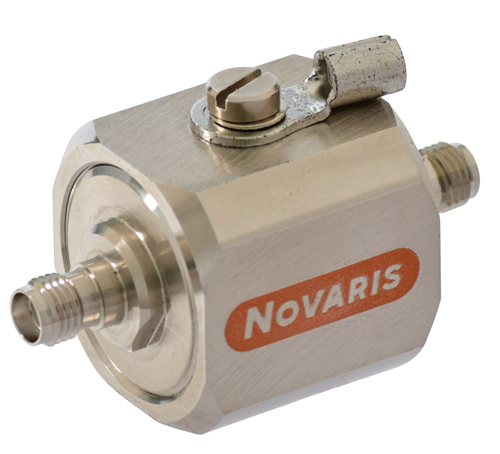

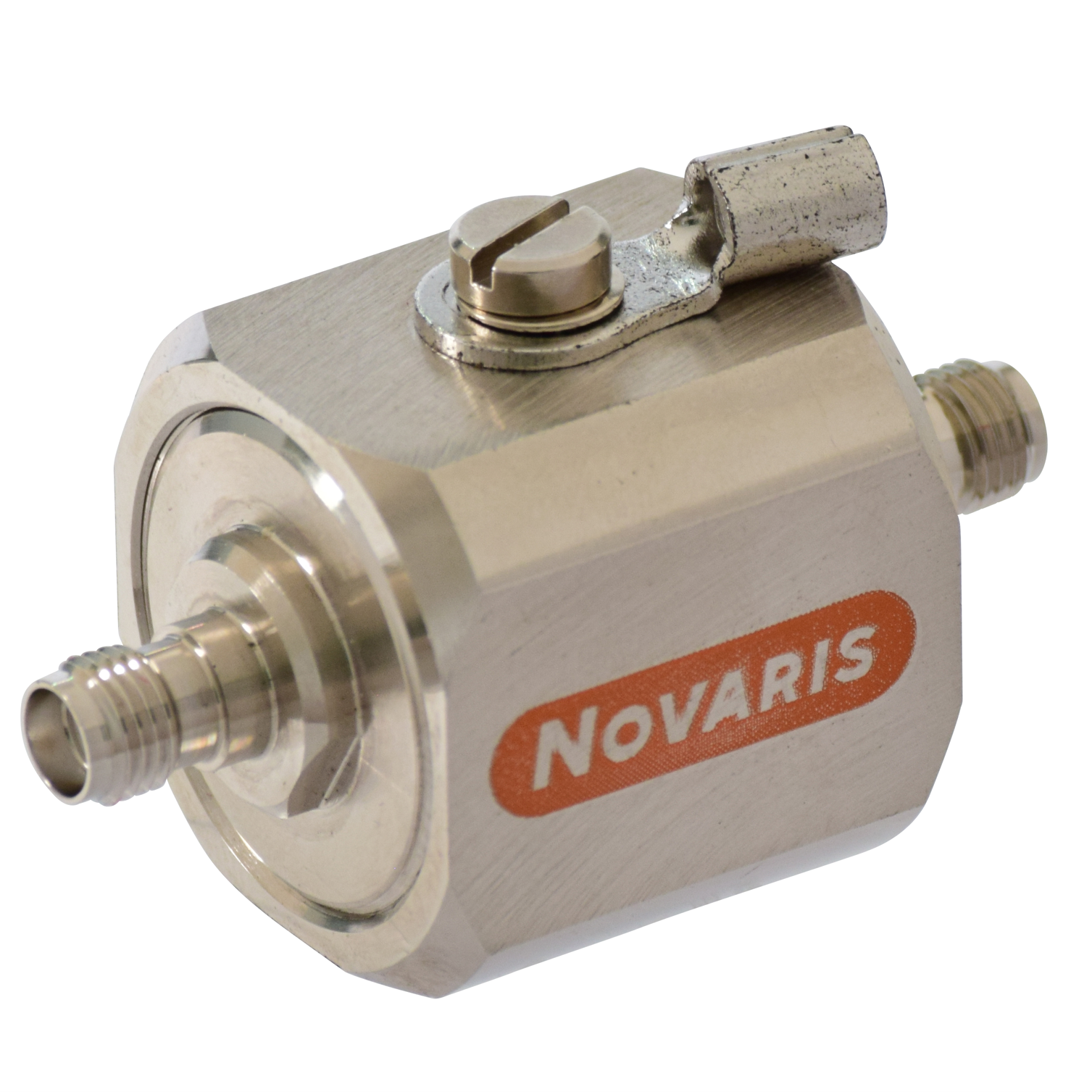

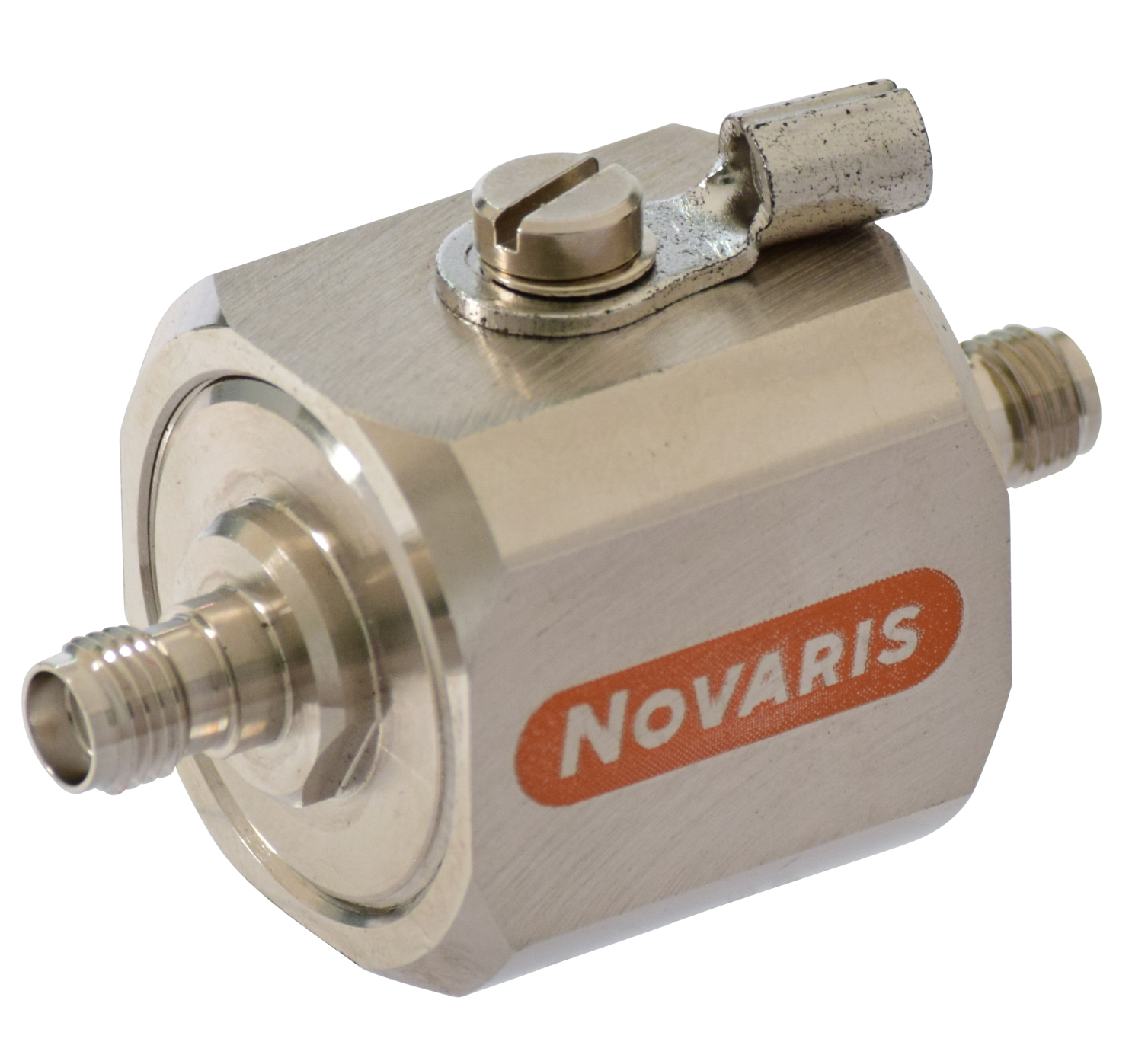

Novaris CS-FF-230-3 SMA RF Protector 20kA 50kA 230VDC 3GHz S-Type Female 25mm W 54mm D 25mm H Brass Nickel Plated IP55

Product Code: CS-FF-230-3

  • Protects signals with 20 kA, 50 kA current capacity
  • Compact size: 25x25x54 mm, weight 150 g
  • Operates in extreme temps: -40 to 85°C
  • High protection rating with IP55 enclosure
  • Complies with IEC61643-21, UL497B standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Rf Equipment Protector
Brand
Novaris
Series
CS
Application
Signal, RF Protection

Electrical

Max. Working Frequency
3 GHz
Power Rating
150W
Sparkover Voltage
0.23kV DC
Voltage Protection Level Up
820V
Max. Discharge Current Imax (8/20µs)
20kA

Mechanical

Connection Orientation
F/F
Connection/Termination
S-type

Dimensions & Physical Data

Depth
48mm
Height
25mm
Width
25mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
