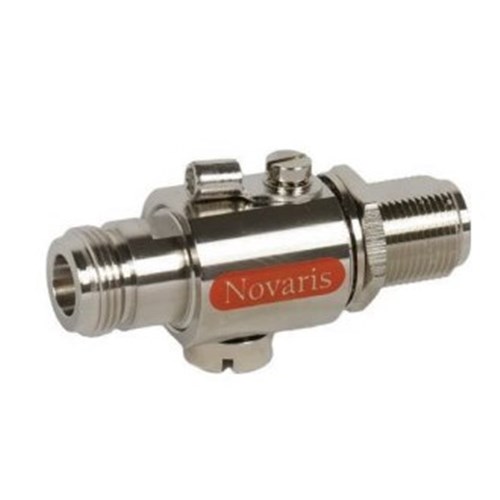

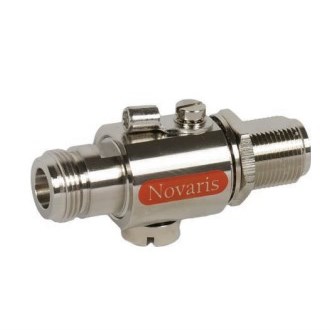

Novaris CN-MF-90-6-M Surge Protector 20kA 90VDC 6GHz Brass Nickel Plated IP55

Product Code: CN-MF-90-6-M

  • Protects signal lines up to 90 VDC
  • Handles currents up to 20 kA
  • Compact design: 26x26x69 mm
  • Operates in -40 to 85°C environments
  • Meets IEC61643-21, UL497B standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Rf Equipment Protector
Brand
Novaris
Series
CN-6
Application
Signal, RF Protection

Electrical

Max. Working Frequency
6 GHz
Power Rating
25W
Sparkover Voltage
0.09kV DC
Voltage Protection Level Up
650V
Max. Discharge Current Imax (8/20µs)
20kA

Mechanical

Connection Orientation
M/F
Connection/Termination
N-Type

Dimensions & Physical Data

Depth
68mm
Height
30mm
Width
25mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP67
