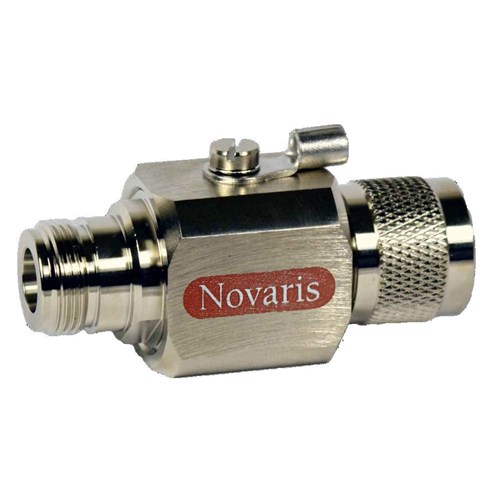

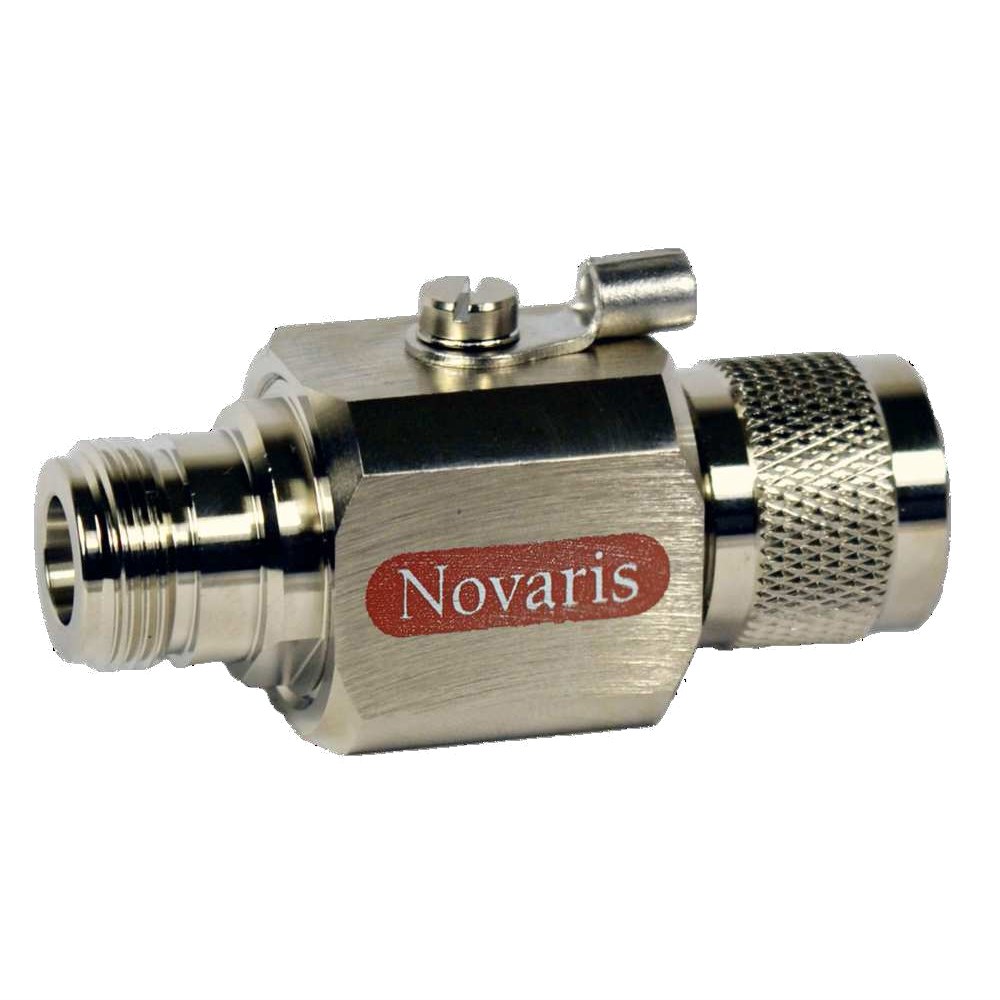

Novaris CN-MF-350-3 Surge Protector 20kA 50kA 350VDC 3GHz Brass Nickel Plated IP55

Product Code: CN-MF-350-3

  • Handles surges up to 50 kA
  • Operates from -40 to 85°C
  • IP55-rated for robust protection
  • Compact size: 25 mm width and height
  • Complies with IEC, UL, AS/NZS standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Rf Equipment Protection Up To 3Ghz
Brand
Novaris
Series
CN-3
Application
Signal, RF Protection

Electrical

Max. Working Frequency
3 GHz
Power Rating
350W
Sparkover Voltage
0.35kV DC
Voltage Protection Level Up
1100V
Max. Discharge Current Imax (8/20µs)
20kA

Mechanical

Connection Orientation
M/F
Connection/Termination
N-Type

Dimensions & Physical Data

Depth
60mm
Height
25mm
Width
25mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
