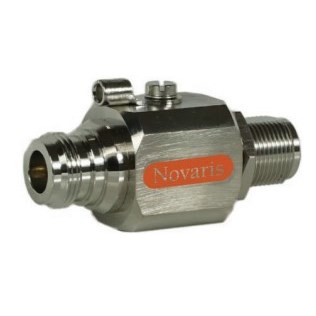

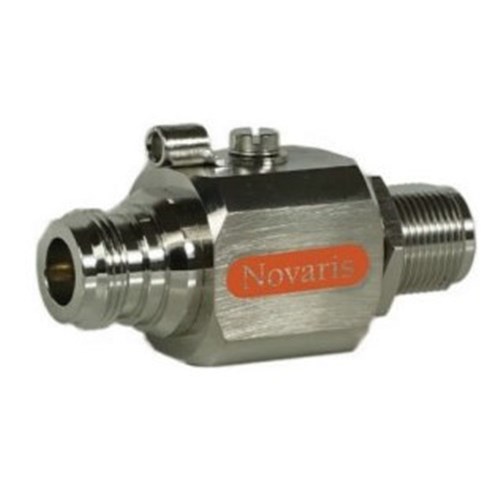

Novaris CN-FF-90-3 Surge Protector 20kA 50kA 90VDC 3GHz Brass Nickel Plated IP55

Product Code: CN-FF-90-3

  • Protects signal lines up to 50 kA
  • Compact size: 25 mm width and height
  • Operates in extreme temps: -40 to 85°C
  • IP55 rated for dust and water protection
  • Complies with IEC, UL, ITU-T, AS/NZS standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Protector
Brand
Novaris
Series
CN
Application
Protect transceivers and antennas of common communication equipment

Electrical

Max. Working Frequency
3GHz
Power Rating
25W
Sparkover Voltage
0.09kV DC
Voltage Protection Level Up
<650V
Max. Discharge Current Imax (8/20µs)
20kA

Mechanical

Connection Orientation
F/F
Connection/Termination
N-Type

Dimensions & Physical Data

Depth
59.15mm
Height
25mm
Width
25mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
