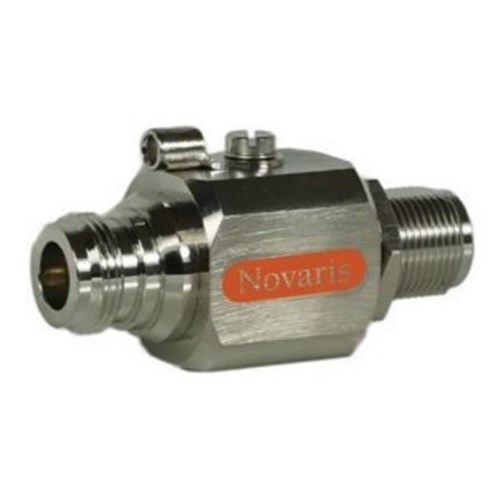

Novaris CN-FF-350-3 Surge Protector 20kA 50kA 350VDC 3GHz Brass Nickel Plated IP55

Product Code: CN-FF-350-3

  • Protects signal lines up to 350 VDC
  • Handles currents of 20 kA and 50 kA
  • Compact size: 25 mm width & height
  • Operates in -40 to 85°C range
  • Meets IEC, UL, ITU-T, AS/NZS standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Rf Equipment Protection Up To 3Ghz
Brand
Novaris
Series
CN-3
Application
Signal, RF Protection

Electrical

Max. Working Frequency
3 GHz
Power Rating
350W
Sparkover Voltage
0.35kV DC
Voltage Protection Level Up
1100V
Max. Discharge Current Imax (8/20µs)
20kA

Mechanical

Connection Orientation
F/F
Connection/Termination
N-Type

Dimensions & Physical Data

Depth
60mm
Height
25mm
Width
25mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
