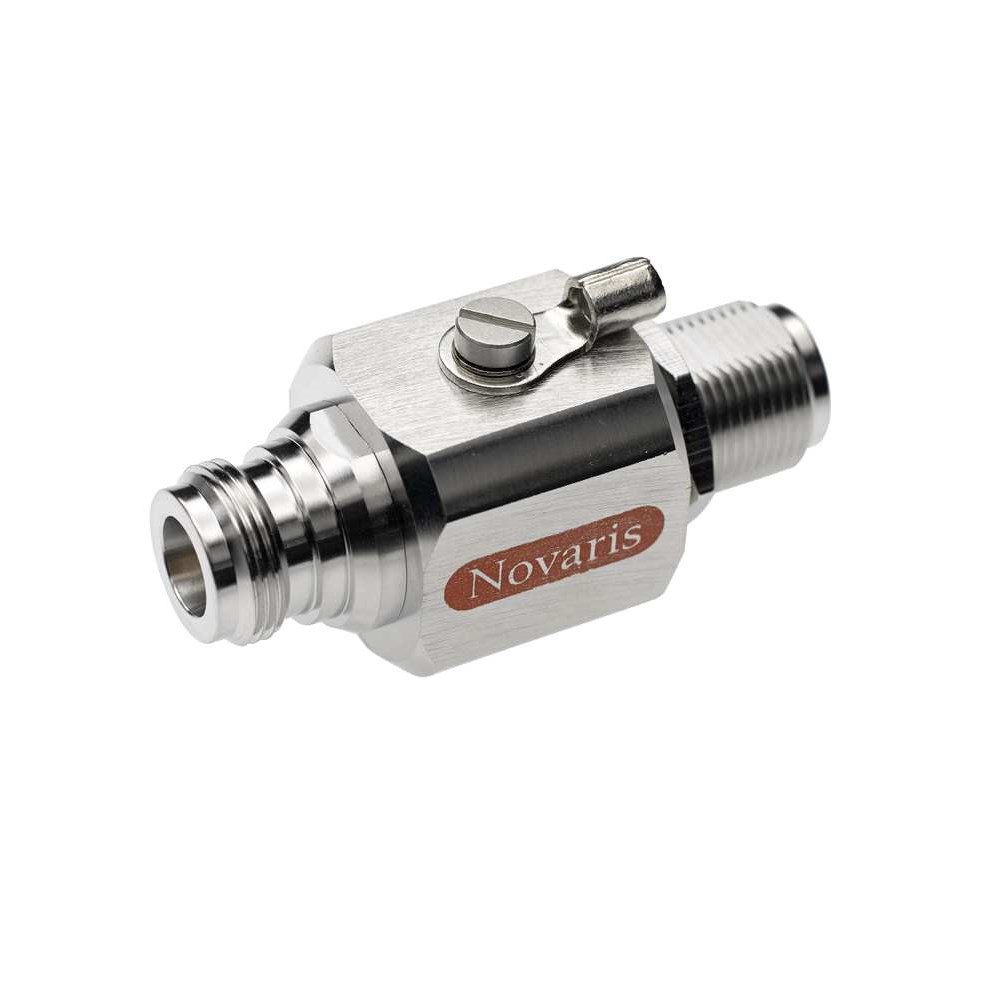

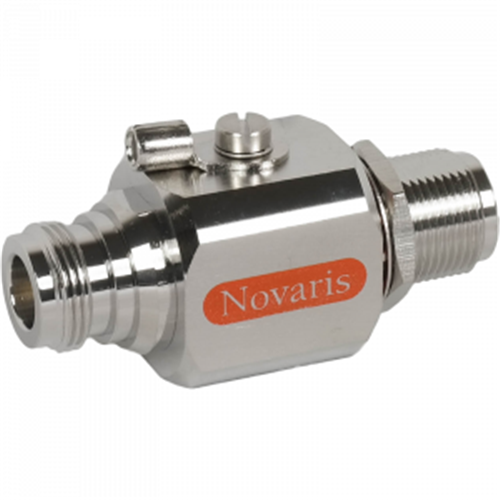

Novaris CN-FF-1000-3 Surge Protector 20kA 50kA 1000VDC 3GHz Brass Nickel Plated IP55

Product Code: CN-FF-1000-3

  • Handles up to 1000 VDC
  • Rated for 20 kA and 50 kA currents
  • Durable IP55 protection rating
  • Operates in -40 to 85°C range
  • Complies with IEC, UL, ITU-T standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Rf Equipment Protection Up To 3Ghz
Brand
Novaris
Series
CN-3
Application
Signal, RF Protection

Electrical

Max. Working Frequency
3 GHz
Power Rating
2500W
Sparkover Voltage
1kV DC
Voltage Protection Level Up
1800V
Max. Discharge Current Imax (8/20µs)
20kA

Mechanical

Connection Orientation
F/F
Connection/Termination
N-Type

Dimensions & Physical Data

Depth
60mm
Height
25mm
Width
25mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
