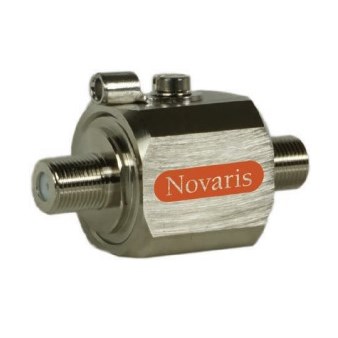

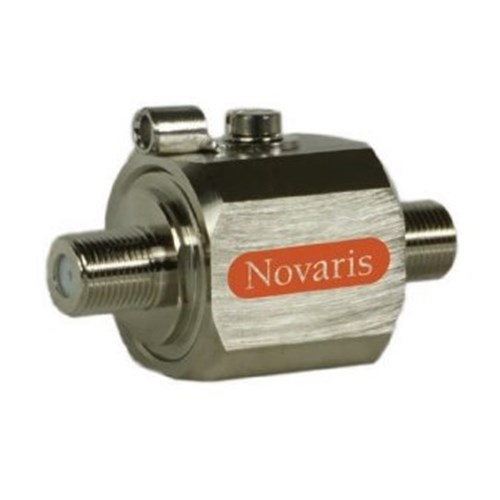

Novaris CF-FF-90-3 F-Type DIN RF Protector 20kA 50kA 90VDC 3GHz F-Type Female 25mm H IP55

Product Code: CF-FF-90-3

  • Protects signal lines up to 50 kA current
  • Operates in -40 to 85°C temperature range
  • F-Type connection with IP55 protection
  • Complies with IEC61643-21, UL497B standards
  • Compact design: 25x25x50 mm, weighs 150 g
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Rf Equipment Protection Up To 3Ghz
Brand
Novaris
Series
CF
Application
Signal, RF Protection

Electrical

Max. Working Frequency
3 GHz
Power Rating
15W
Sparkover Voltage
0.09kV DC
Voltage Protection Level Up
650V
Max. Discharge Current Imax (8/20µs)
20kA

Mechanical

Connection Orientation
F/F
Connection/Termination
F-Type

Dimensions & Physical Data

Depth
50mm
Height
25mm
Width
25mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP55

Documents

IPD Product Catalogue V17
