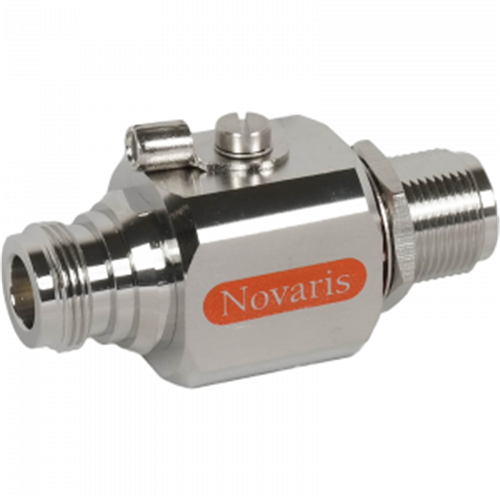

Novaris CD-MF-600-3 DIN RF Protector 20kA 50kA 600VDC 3GHz D-Type Female Male 40mm H IP55

Product Code: CD-MF-600-3

  • Surge protection up to 50 kA
  • Suitable for 600 VDC systems
  • Compact size: 40x40x72 mm
  • Operates in -40 to 85°C range
  • IP55-rated for robust protection
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Rf Equipment Protection Up To 3Ghz
Brand
Novaris
Series
CD
Application
Signal, RF Protection

Electrical

Max. Working Frequency
3 GHz
Power Rating
1000W
Sparkover Voltage
0.6kV DC
Voltage Protection Level Up
1300V
Max. Discharge Current Imax (8/20µs)
20kA

Mechanical

Connection Orientation
M/F
Connection/Termination
7/16" DIN

Dimensions & Physical Data

Depth
80mm
Height
40mm
Width
40mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
