Products

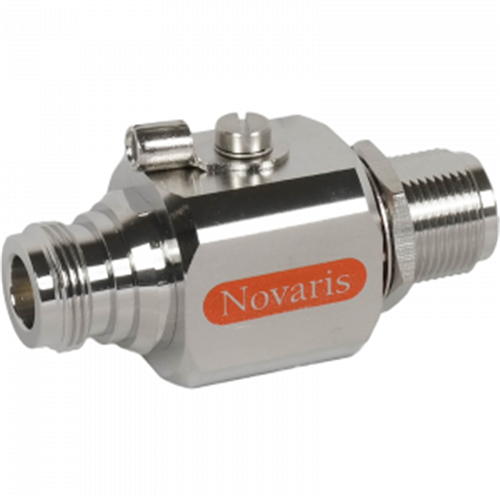

Novaris CD-MF-350-3 DIN RF Protector 20kA 50kA 350VDC 3GHz D-Type Female Male 40mm H IP55

Product Code: CD-MF-350-3

  • Surge protector with 350 VDC rating
  • Handles current up to 50 kA
  • Compact size: 40x40x72 mm
  • IP55 rated for robust protection
  • Operates from -40 to 85°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Rf Equipment Protection Up To 3Ghz
Brand
Novaris
Series
CD
Application
Signal, RF Protection

Electrical

Max. Working Frequency
3 GHz
Power Rating
350W
Sparkover Voltage
0.35kV DC
Voltage Protection Level Up
1100V
Max. Discharge Current Imax (8/20µs)
20kA

Mechanical

Connection Orientation
M/F
Connection/Termination
7/16" DIN

Dimensions & Physical Data

Depth
80mm
Height
40mm
Width
40mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
