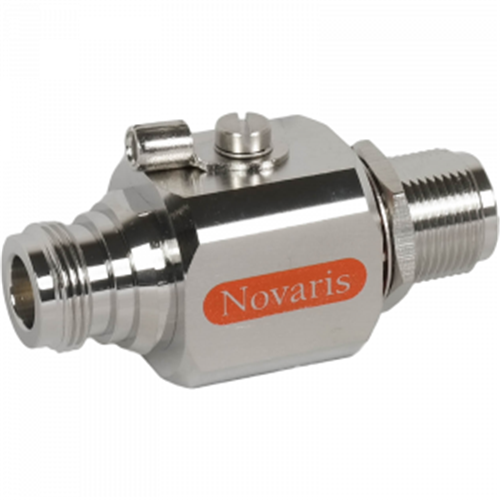

Novaris CD-MF-230-3 DIN RF Protector 20kA 50kA 230VDC 3GHz D-Type Female Male 40mm H IP55

Product Code: CD-MF-230-3

  • Rated for 230 VDC, handles 20 kA & 50 kA currents
  • Compact size: 40x40x72 mm, weighs only 150 g
  • Operates in extreme temperatures: -40 to 85°C
  • High protection with IP55 rating and <0.82 kV voltage level
  • Complies with IEC61643-21, UL497B, AS/NZS 1768 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Rf Equipment Protection Up To 3Ghz
Brand
Novaris
Series
CD
Application
Signal, RF Protection

Electrical

Max. Working Frequency
3 GHz
Power Rating
150W
Sparkover Voltage
0.23kV DC
Voltage Protection Level Up
820V
Max. Discharge Current Imax (8/20µs)
20kA

Mechanical

Connection Orientation
M/F
Connection/Termination
7/16" DIN

Dimensions & Physical Data

Depth
80mm
Height
40mm
Width
40mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
