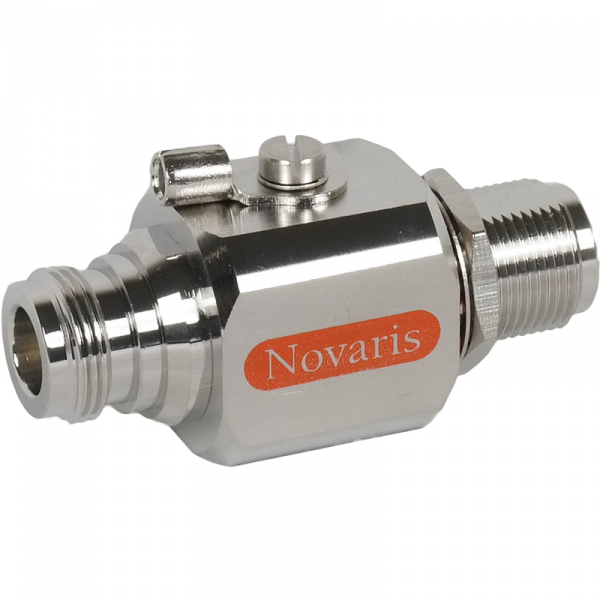

Novaris CD-FF-1000-3 DIN RF Protector 20kA 50kA 1000VDC 3GHz D-Type Female 40mm H IP55

Product Code: CD-FF-1000-3

  • Handles up to 1000 VDC & 20/50 kA current
  • Compact size: 40x40x72 mm, weighs 150 g
  • IP55 rated for robust protection
  • Operates in -40 to 85°C environments
  • Complies with IEC61643-21 & UL497B standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Rf Equipment Protection Up To 3Ghz
Brand
Novaris
Series
CD
Application
Signal, RF Protection

Electrical

Max. Working Frequency
3 GHz
Power Rating
2500W
Sparkover Voltage
1kV DC
Voltage Protection Level Up
1800V
Max. Discharge Current Imax (8/20µs)
20kA

Mechanical

Connection Orientation
F/F
Connection/Termination
7/16" DIN

Dimensions & Physical Data

Depth
80mm
Height
40mm
Width
40mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
