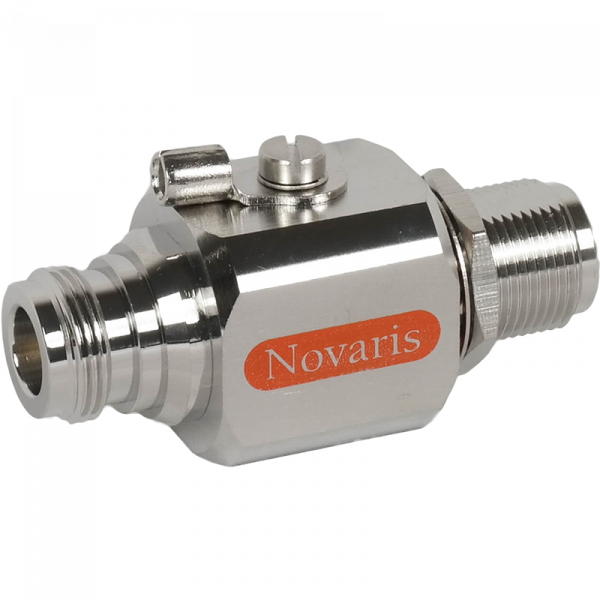

Novaris CB-MF-230-3 Coaxial Surge Protector 20kA 50kA 230VDC 3GHz Brass Nickel Plated IP55

Product Code: CB-MF-230-3

  • Rated for 230 VDC, 40-125 W
  • Handles surges of 20 kA, 50 kA
  • IP55 protection rating
  • Operates in -40 to 85°C conditions
  • Complies with IEC61643-21 & UL497B standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Rf Equipment Protection Up To 3Ghz
Brand
Novaris
Series
CB
Application
Signal, RF Protection

Electrical

Max. Working Frequency
3 GHz
Power Rating
150W
Sparkover Voltage
0.23kV DC
Voltage Protection Level Up
820V
Max. Discharge Current Imax (8/20µs)
20kA

Mechanical

Connection Orientation
M/F
Connection/Termination
BNC

Dimensions & Physical Data

Depth
57mm
Height
25mm
Width
25mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP55

Documents

IPD Product Catalogue V17
