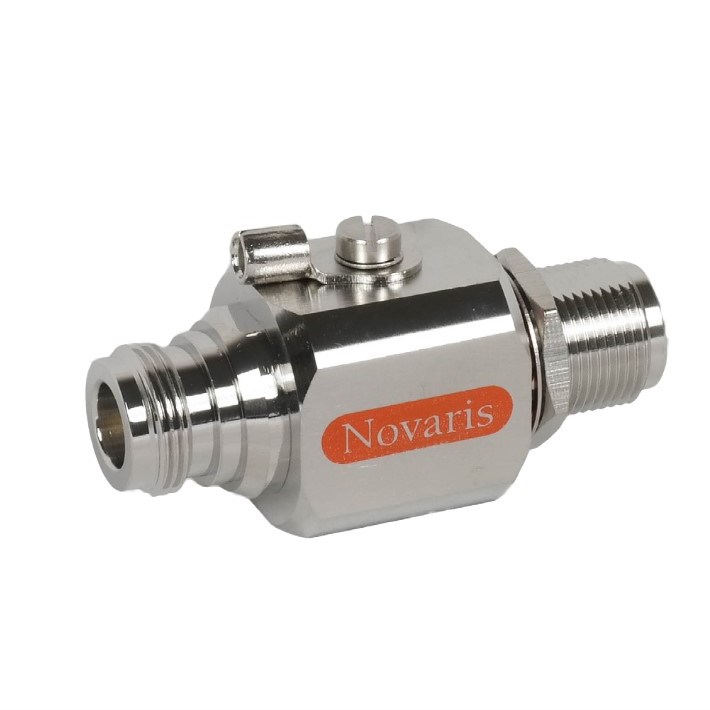

Novaris CB-FF-90-3-D Surge Protector With Clip 20kA 50kA 90VDC 3GHz Brass Nickel Plated IP55

Product Code: CB-FF-90-3-D

  • Handles up to 50 kA surge current
  • IP55 rated for dust and water resistance
  • Compact design: 25x25x52 mm size
  • Operates in extreme temps: -40 to 85°C
  • Complies with IEC, UL, ITU-T, AS/NZS standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Rf Equipment Protector
Brand
Novaris
Series
CB
Application
Signal, RF Protection

Electrical

Max. Working Frequency
3 GHz
Power Rating
25W
Sparkover Voltage
0.09kV DC
Voltage Protection Level Up
650V
Max. Discharge Current Imax (8/20µs)
20kA

Mechanical

Connection Orientation
F/F
Connection/Termination
BNC

Dimensions & Physical Data

Depth
52mm
Height
25mm
Width
25mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP55

Documents

IPD Product Catalogue V17
