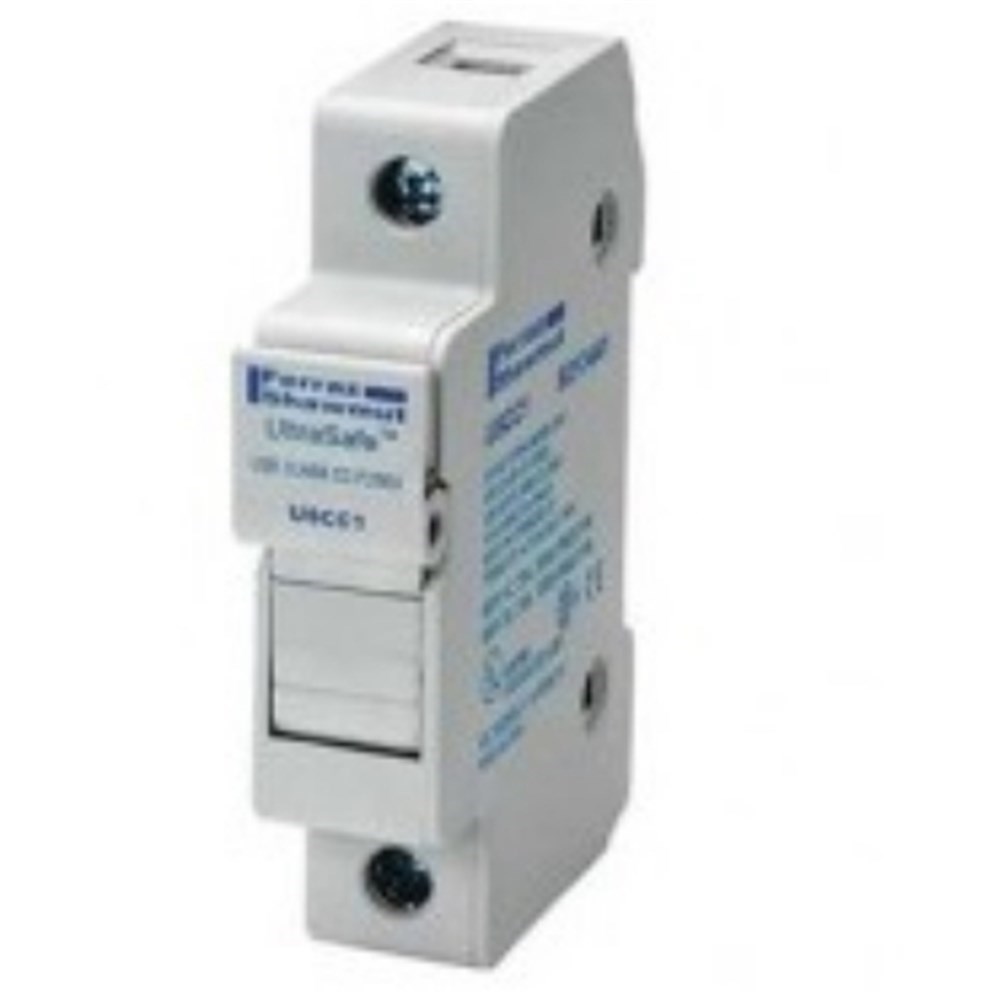

Mersen US3J1 Fuse Holder 30A 600VAC/DC 30sq-mm Cable Entry 21mm Dia x 57mm L Fuse For: AJT/A4J

Product Code: US3J1

  • Holds Class J fuses securely
  • Suitable for AJT/A4J fuses
  • Rated for 30A, 600VAC/VDC
  • IP20 protection ensures safety
  • Accommodates 21mm x 57mm fuses
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Holder
Brand
Mersen
Series
US3J UltraSafe Class J
Application
600 V motors, transformers, lighting, heating, control circuits and general loads; non-load disconnect

Electrical

Breaking Capacity
200kA SCCR
Rated Current (In)
30A
Rated Frequency
50/60Hz
Rated Voltage (Ur)
600V AC/DC

Mechanical

Indicators
without indicator
Material
Polyamide body; tin-plated copper contacts
Mounting
35 mm DIN rail
Size Code
Class J / 22 x 58
Connection/Termination
Pressure plate / screw terminal
Fuse Holder
AJT, A4J, HSJ Class J fuses

Dimensions & Physical Data

Depth
106mm overall
Length
114mm
Weight
0.2087kg
Width
32.5mm

Environmental

IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
UL 4248-8; IEC 60269-1; IEC 60947-3
