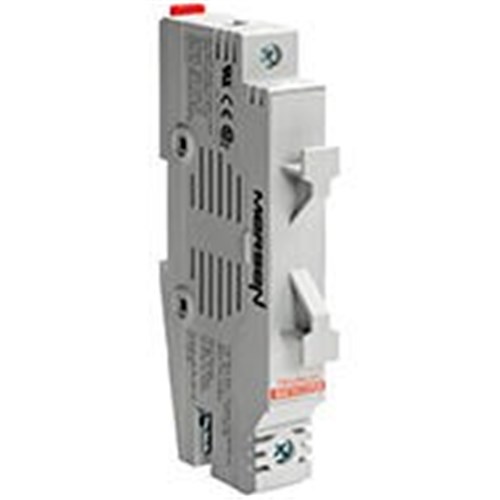

Mersen US15M1HEL Fuse Holder 32A 1-P 1500VDC DIN Rail Mount 10mm Dia x 85mm L Fuse

Product Code: US15M1HEL

  • Rated for 32A and 1500VDC
  • Compact size: 22.4mm width
  • IP20 protection rating
  • Fits DIN rail mounting
  • Supports cable sizes 2.5-25 sq-mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Holder
Brand
Mersen
Series
HelioProtection US15M1HEL
Application
Utility-scale photovoltaic applications; 1500 VDC combiner boxes

Electrical

Breaking Capacity
50kA DC SCCR
Rated Current (In)
32A
Rated Voltage (Ur)
1500V DC

Mechanical

Cable Entry
Bus bar / wire entry
Colour
White
Indicators
with LED
Material
UL 94 V-0 polymer
Mounting
35 mm DIN rail
Size Code
10/14 x 85
Connection/Termination
Bus bar termination clamp; wire terminal
Fuse Holder
HP15M fuse series

Dimensions & Physical Data

Length
142.8mm
Weight
0.0084kg
Width
22.4mm

Environmental

IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
UL 4248-19; CSA C22.2 No. 4248.19
