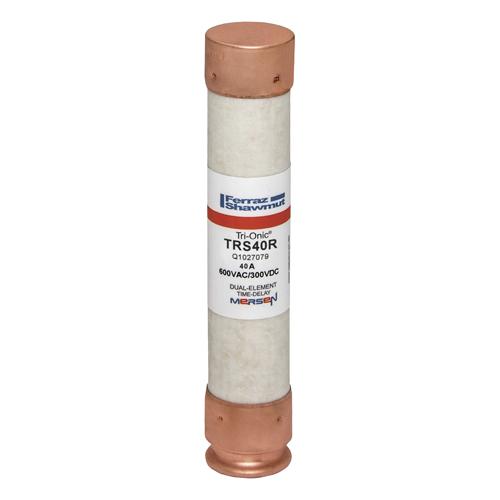

Mersen TRS40R Time Delay Current-Limiting Fuse 40A 600/300VAC/DC 27mmDia 139mm L Class RK5 200kA Clip Mount Ferrule

Product Code: TRS40R

  • Rated Current: 40 A
  • Voltage: 600/300 VAC/VDC
  • Breaking Capacity: 200 kA
  • Fuse Class: RK5
  • Clip Mounting Type
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Link
Brand
Mersen
Series
TRS-R
Application
Motors, mains, feeders, transformers, service equipment, and general-purpose circuits.

Electrical

Utilization Category
Class RK5
Breaking Capacity
200kA AC / 20kA DC
Rated Current (In)
40A
Rated Frequency
50/60Hz
Rated Voltage (Ur)
600V AC / 300V DC
Speed Class
Time Delay

Mechanical

Body Style
Cylindrical
Indicators
without indicator
Material
Fiberglass body; high-grade silica filler; metal end caps/terminals
Mounting
Rejection ferrule fuse blocks
Size Code
27 x 139
Connection/Termination
Rejection ferrule end caps
Fuse Holder
Class RK5 fuse blocks

Dimensions & Physical Data

Length
139mm
Weight
0.0621kg (Approx.)
Width
Ø 27mm

Safety, Standards & Compliance

Standards and Approvals
UL 248-12; CSA C22.2 No. 248.12; DC listed to UL 248
