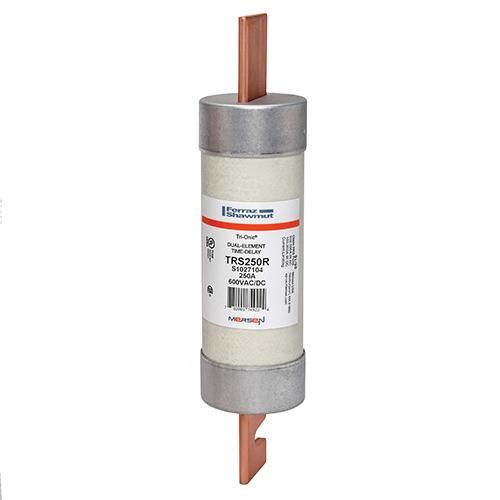

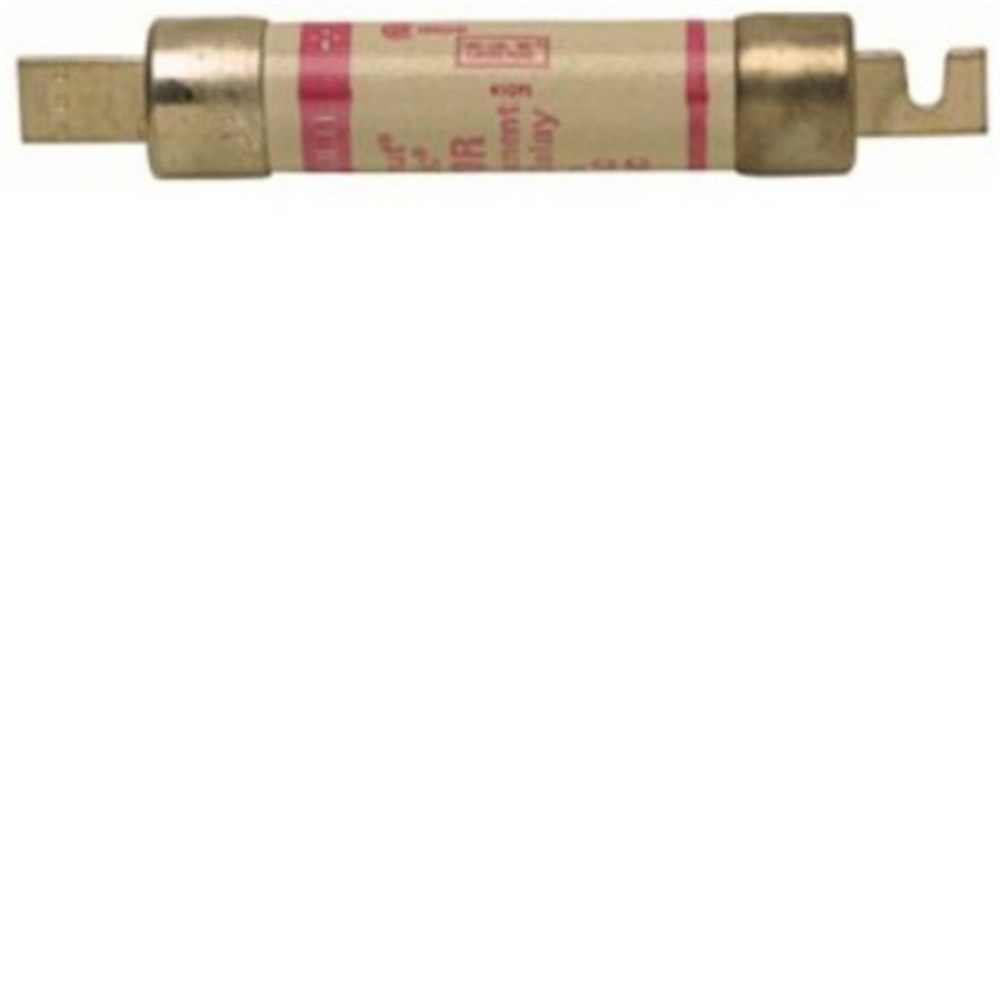

Mersen TRS250R Time Delay Current-Limiting Fuse 250A 600VAC/DC 66mmDia 199mm L Class RK5 200kA Clip Mount Blade

Product Code: TRS250R

  • Rated for 250 A and 600 VAC/VDC
  • High breaking capacity of 200 kA
  • Compact size: 66 mm dia, 199 mm length
  • Durable poly tube body material
  • Blade terminal with tin plated copper
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Link
Brand
Mersen
Series
TRS-R
Application
Motors, mains, feeders, transformers, service equipment, and general-purpose circuits.

Electrical

Utilization Category
Class RK5
Breaking Capacity
200kA AC / 100kA DC
Rated Current (In)
250A
Rated Frequency
50/60Hz
Rated Voltage (Ur)
600V AC / 600V DC
Speed Class
Time Delay

Mechanical

Body Style
Cylindrical
Indicators
without indicator
Material
Fiberglass body; high-grade silica filler; metal end caps/terminals
Mounting
Class RK5 fuse blocks
Size Code
66 x 295
Connection/Termination
Blade terminals
Fuse Holder
Class RK5 fuse blocks

Dimensions & Physical Data

Length
295mm
Weight
1.4243kg (Approx.)
Width
Ø 66mm

Safety, Standards & Compliance

Standards and Approvals
UL 248-12; CSA C22.2 No. 248.12; DC listed to UL 248
