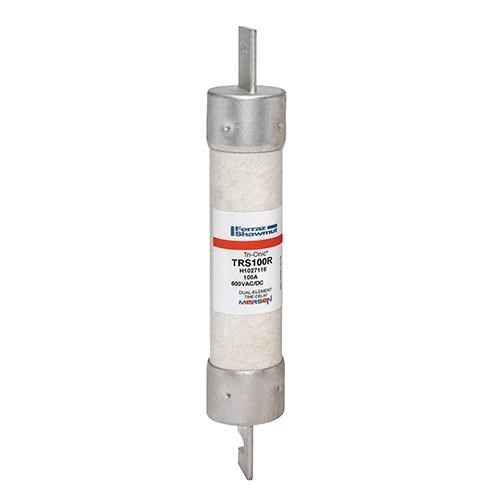

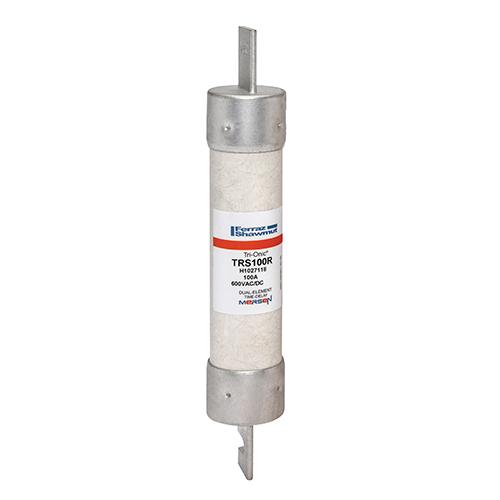

Mersen TRS100R Time Delay Current-Limiting Fuse 100A 600VAC/DC 34mmDia 150mm L Class RK5 200kA Clip Mount Blade

Product Code: TRS100R

  • Rated current of 100 A
  • Voltage rating: 600 VAC/VDC
  • High breaking capacity: 200 kA
  • Compact size: 1.31 in Dia x 7.88 in L
  • Class RK5 fuse with blade terminals
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Link
Brand
Mersen
Series
TRS-R
Application
Motors, mains, feeders, transformers, service equipment, and general-purpose circuits.

Electrical

Utilization Category
Class RK5
Breaking Capacity
200kA AC / 100kA DC
Rated Current (In)
100A
Rated Frequency
50/60Hz
Rated Voltage (Ur)
600V AC / 600V DC
Speed Class
Time Delay

Mechanical

Body Style
Cylindrical
Indicators
without indicator
Material
Fiberglass body; high-grade silica filler; metal end caps/terminals
Mounting
Class RK5 fuse blocks
Size Code
34 x 200
Connection/Termination
Blade terminals
Fuse Holder
Class RK5 fuse blocks

Dimensions & Physical Data

Length
200mm
Weight
0.2849kg (Approx.)
Width
Ø 34mm

Safety, Standards & Compliance

Standards and Approvals
UL 248-12; CSA C22.2 No. 248.12; DC listed to UL 248
