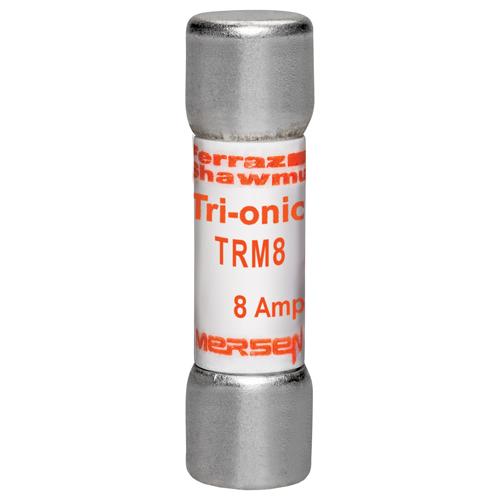

Mersen TRM8 Time Delay Midget Fuse 8A 250VAC 10mm Dia 38mm L 100kA Ferrule 10 in Dia x 38mm L Clip Mount

Product Code: TRM8

  • Rated for 8A, 250VAC applications
  • High breaking capacity of 100 kA
  • Compact size: 10mm dia x 38mm length
  • Ferrule terminals with tin-plated copper
  • Suitable for clip mounting
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Midget / Supplemental Fuse
Brand
Mersen
Series
TRM
Application
Supplemental protection for small motors, transformers, lighting, and high-inrush control circuits.

Electrical

Breaking Capacity
10 kA AC
Rated Current (In)
0.333333
Rated Frequency
50/60 Hz
Rated Voltage (Ur)
250 V AC
Speed Class
Time Delay

Mechanical

Body Style
Cylindrical
Indicators
without indicator
Mounting
Midget fuse holder / fuse block
Size Code
10 x 38
Connection/Termination
Ferrule end caps
Fuse Holder
UltraSafe fuse holders / midget fuse blocks

Dimensions & Physical Data

Length
38 mm
Weight
0.0059 kg (Approx.)
Width
Ø 10 mm

Safety, Standards & Compliance

Standards and Approvals
UL 248-14; CSA C22.2 No. 248.14

Documents

IPD Product Catalogue V17
