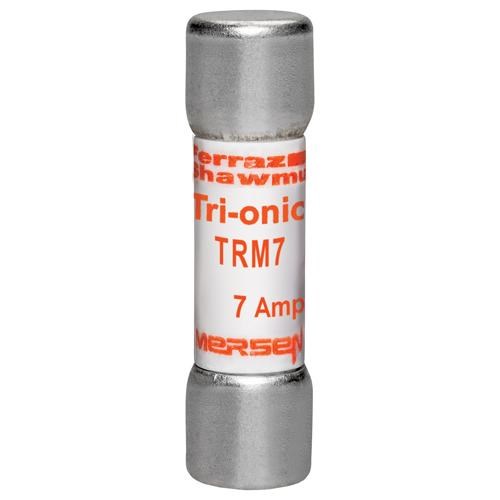

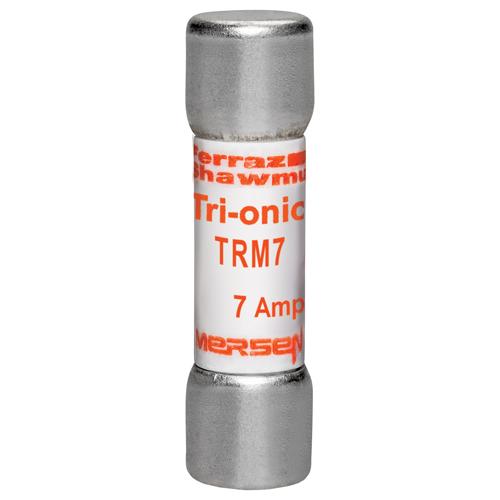

Mersen TRM7 Time Delay Midget Fuse 7A 250VAC 10mm Dia 38mm L 100kA Ferrule 10 in Dia x 38mm L Clip Mount

Product Code: TRM7

  • Rated for 7 A, 250 VAC
  • Compact size: 10 mm Dia x 38 mm L
  • High breaking capacity of 100 kA
  • Ferrule terminal with tin-plated copper
  • GMG body and insulation material
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Midget Time - Delay Fuse
Brand
Mersen
Series
Tri-Onic TRM
Application
Small motors, small transformers, lighting circuits and control circuits

Electrical

Breaking Capacity
10 kA
Rated Current (In)
0.291667
Rated Frequency
50/60 Hz
Rated Voltage (Ur)
250 V AC
Speed Class
Time delay

Mechanical

Body Style
Ferrule / cylindrical
Indicators
No
Size Code
38 x 10
Connection/Termination
Ferrule end caps

Dimensions & Physical Data

Length
38 mm
Weight
0.0059 kg
Width
Ø 10 mm

Safety, Standards & Compliance

Standards and Approvals
UL 248-14, CSA C22.2 No. 248.14

Documents

IPD Product Catalogue V17
