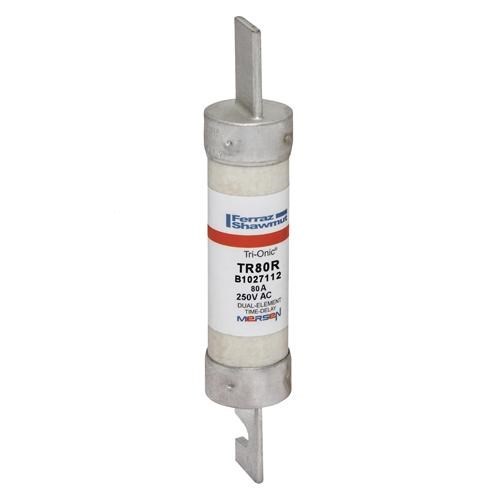

Mersen TR80R Time Delay Current-Limiting Fuse 80A 250VAC/DC 27mmDia 99mm L Class RK5 200kA Clip Mount Blade

Product Code: TR80R

  • Rated for 80 A, 250 VAC/VDC
  • High breaking capacity of 200 kA
  • Compact size: 99 mm length
  • Clip mounting for easy installation
  • Durable poly tube body material
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Link
Brand
Mersen
Series
TR-R
Application
Motors, mains, feeders, transformers, service equipment, and general-purpose circuits.

Electrical

Utilization Category
Class RK5
Breaking Capacity
200kA AC / 20kA DC
Rated Current (In)
80A
Rated Frequency
50/60Hz
Rated Voltage (Ur)
250V AC / 250V DC
Speed Class
Time Delay

Mechanical

Body Style
Cylindrical
Indicators
No indicator
Material
Body: Fiberglass, Terminal: Tin plated copper
Mounting
Blade / fuse block
Size Code
Class RK5
Connection/Termination
Rejection blade terminals

Dimensions & Physical Data

Length
149mm
Weight
0.1374kg (Approx.)
Width
Ø 27mm

Safety, Standards & Compliance

Standards and Approvals
UL Listed to UL 248-12; CSA C22.2 No. 248.12

Documents

IPD Product Catalogue V17
