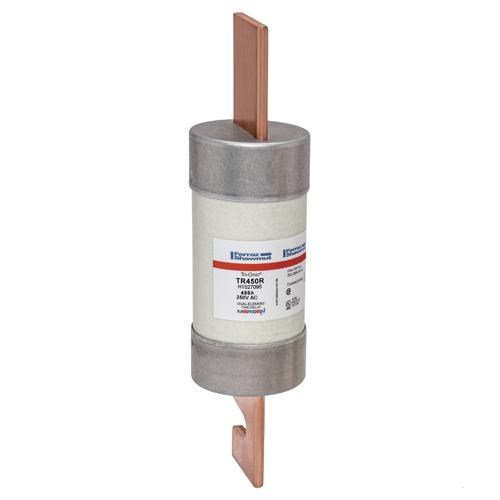

Mersen TR450R Time Delay Current-Limiting Fuse 450A 250/160VAC/DC 66mmDia 150mm L Class RK5 200kA Clip Mount Blade

Product Code: TR450R

  • Rated Current: 450 A
  • Voltage: 250/160 VAC/VDC
  • High Breaking Capacity: 200 kA
  • Fuse Class RK5 for reliability
  • Tin Plated Copper terminals
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Link
Brand
Mersen
Series
TR-R
Application
Motors, mains, feeders, transformers, service equipment, and general-purpose circuits.

Electrical

Utilization Category
Class RK5
Breaking Capacity
200kA AC / 20kA DC
Rated Current (In)
450A
Rated Frequency
50/60Hz
Rated Voltage (Ur)
250V AC / 160V DC
Speed Class
Time Delay

Mechanical

Body Style
Cylindrical
Indicators
No indicator
Material
Body: Fiberglass, Terminal: Tin plated copper
Mounting
Blade / fuse block
Size Code
Class RK5
Connection/Termination
Rejection blade terminals

Dimensions & Physical Data

Length
264mm
Weight
1.33kg (Approx.)
Width
Ø 66mm

Safety, Standards & Compliance

Standards and Approvals
UL Listed to UL 248-12; CSA C22.2 No. 248.12

Documents

IPD Product Catalogue V17
