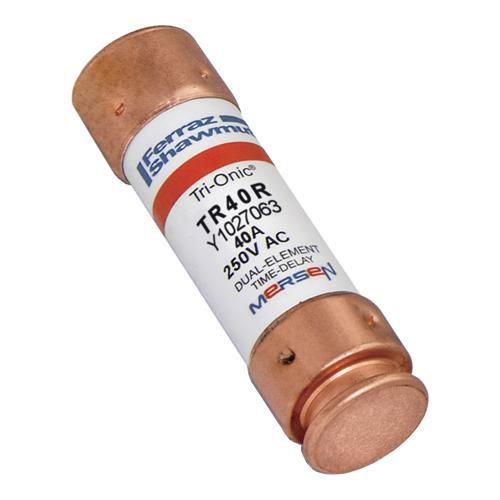

Mersen TR40R Time Delay Current-Limiting Fuse 40A 250VAC/DC 21mmDia 76mm L Class RK5 200kA Clip Mount Ferrule

Product Code: TR40R

  • Rated for 40 A, 250 VAC/VDC applications
  • High breaking capacity of 200 kA
  • Compact size: 0.81 in Dia x 3 in L
  • Clip mounting for easy installation
  • Durable poly tube body with copper terminals
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Link
Brand
IPD
Series
TR
Application
Overcurrent protection of motors, transformers, service entrance equipment, feeders and branch circuits

Electrical

Breaking Capacity
200kA
Rated Current (In)
40A
Rated Voltage (Ur)
250V AC
Speed Class
Time Delay

Mechanical

Body Style
Cylindrical
Indicators
Non-Indicating
Material
Body: Poly tube, Terminal: Tin-Plated Copper
Size Code
Class RK5

Dimensions & Physical Data

Length
76.2mm
Weight
0.054kg (Approx.)
Width
Ø 20.7mm

Safety, Standards & Compliance

Standards and Approvals
UL 248-12; CSA C22.2 No.248.12
