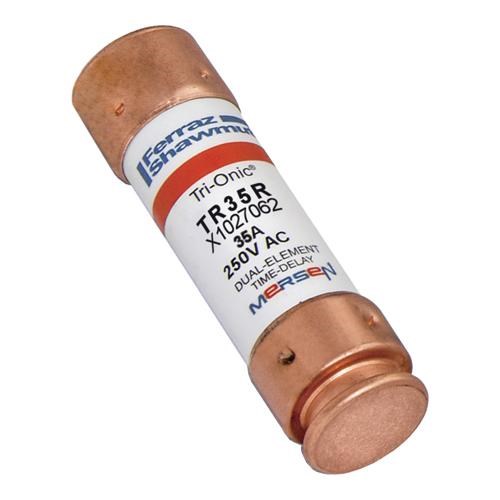

Mersen TR35R Time Delay Current-Limiting Fuse 35A 250VAC/DC 21mmDia 76mm L Class RK5 200kA Clip Mount Ferrule

Product Code: TR35R

  • Rated for 35 A, 250 VAC/VDC
  • Compact 76 mm length, clip mount
  • High breaking capacity of 200 kA
  • Class RK5 with ferrule terminals
  • Durable poly tube body
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Link
Brand
IPD
Series
TR
Application
Overcurrent protection of motors, transformers, service entrance equipment, feeders and branch circuits

Electrical

Breaking Capacity
200kA
Rated Current (In)
35A
Rated Voltage (Ur)
250V AC
Speed Class
Time Delay

Mechanical

Body Style
Cylindrical
Indicators
Non-Indicating
Material
Body: Poly tube, Terminal: Tin-Plated Copper
Size Code
Class RK5

Dimensions & Physical Data

Length
76.2mm
Weight
0.054kg (Approx.)
Width
Ø 20.7mm

Safety, Standards & Compliance

Standards and Approvals
UL 248-12; CSA C22.2 No.248.12

Documents

IPD Product Catalogue V17
