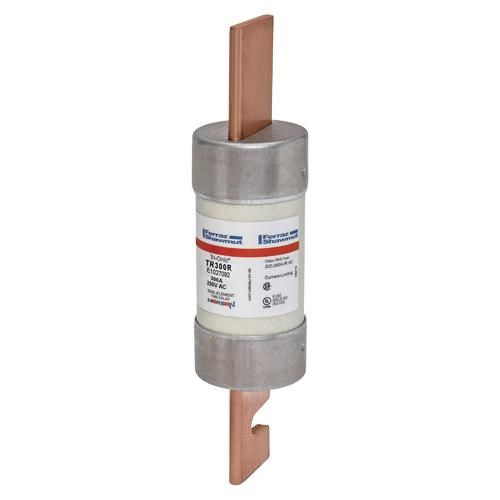

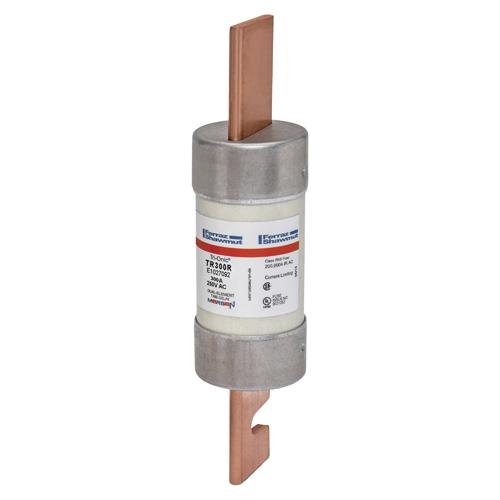

Mersen TR300R Time Delay Current-Limiting Fuse 300A 250VAC/DC 50mmDia 123mm L Class RK5 200kA Clip Mount Blade

Product Code: TR300R

  • Rated for 300 A current, 250 VAC/VDC
  • High breaking capacity of 200 kA
  • Compact size: 2.06 in Dia x 8.63 in L
  • Clip mounting for easy installation
  • Durable tin plated copper terminals
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Link
Brand
IPD
Series
TR
Application
Overcurrent protection of motors, transformers, service entrance equipment, feeders and branch circuits

Electrical

Breaking Capacity
200kA
Rated Current (In)
300A
Rated Voltage (Ur)
250V AC
Speed Class
Time Delay

Mechanical

Body Style
Cylindrical
Indicators
Non-Indicating
Material
Body: Poly tube, Terminal: Tin-Plated Copper
Size Code
Class RK5

Dimensions & Physical Data

Length
219.2mm
Weight
0.74kg (Approx.)
Width
Ø 52.4mm

Safety, Standards & Compliance

Standards and Approvals
UL 248-12; CSA C22.2 No.248.12
