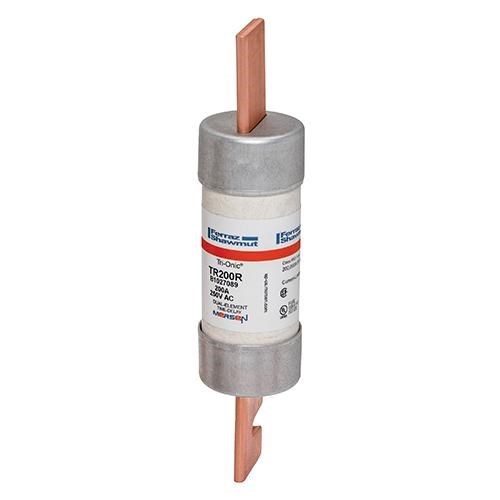

Mersen TR200R Time Delay Current-Limiting Fuse 200A 250VAC/DC 40mmDia 111mm L Class RK5 200kA Clip Mount Blade

Product Code: TR200R

  • Rated for 200 A current, 250 VAC/VDC
  • High breaking capacity of 200 kA
  • Blade terminal with tin-plated copper
  • Compact 1.56 in diameter, 7.13 in length
  • Poly tube insulation for durability
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Link
Brand
IPD
Series
TR
Application
Overcurrent protection of motors, transformers, service entrance equipment, feeders and branch circuits

Electrical

Breaking Capacity
200kA
Rated Current (In)
200A
Rated Voltage (Ur)
250V AC
Speed Class
Time Delay

Mechanical

Body Style
Cylindrical
Indicators
Non-Indicating
Material
Body: Poly tube, Terminal: Tin-Plated Copper
Size Code
Class RK5

Dimensions & Physical Data

Length
181.1mm
Weight
0.34kg (Approx.)
Width
Ø 39.7mm

Safety, Standards & Compliance

Standards and Approvals
UL 248-12; CSA C22.2 No.248.12
