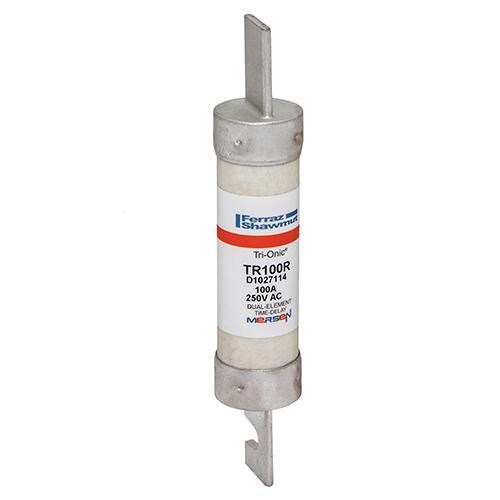

Mersen TR100R Time Delay Current-Limiting Fuse 100A 250VAC/DC 27mmDia 99mm L Class RK5 200kA Clip Mount Blade

Product Code: TR100R

  • Rated for 100 A, 250 VAC/VDC
  • High breaking capacity of 200 kA
  • Compact design: 99 mm length
  • Clip mounting for easy installation
  • Tin plated copper terminals
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Link
Brand
IPD
Series
TR
Application
Overcurrent protection of motors, transformers, service entrance equipment, feeders and branch circuits

Electrical

Breaking Capacity
200kA
Rated Current (In)
100A
Rated Voltage (Ur)
250V AC
Speed Class
Time Delay

Mechanical

Body Style
Cylindrical
Indicators
Non-Indicating
Material
Body: Poly tube, Terminal: Tin-Plated Copper
Size Code
Class RK5

Dimensions & Physical Data

Length
149.4mm
Weight
0.14kg (Approx.)
Width
Ø 27mm

Safety, Standards & Compliance

Standards and Approvals
UL 248-12; CSA C22.2 No.248.12
