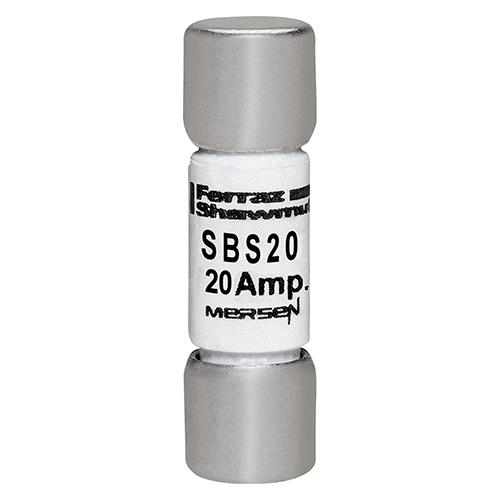

Mersen SBS20 Fast-Acting Midget Fuse 20A 600VAC 0.41 in Dia 1.38 in L 100kA Interrupt Ferrule

Product Code: SBS20

  • Rated for 20 A, 600 VAC applications
  • Compact size: 1.38 in length
  • High interrupt rating of 100 kA
  • Ferrule terminal with tin-plated copper
  • Durable GMG body and insulation
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Midget Fuse
Brand
Mersen
Series
SBS
Application
Control circuits, lighting ballasts, meter circuits and electronic circuits

Electrical

Breaking Capacity
100kA RMS
Rated Current (In)
20A
Rated Frequency
50/60Hz
Rated Voltage (Ur)
600V AC
Speed Class
Fast-acting

Mechanical

Body Style
Ferrule / cylindrical
Indicators
No
Material
Fiberglass body
Size Code
35 x 10
Connection/Termination
Ferrule end caps

Dimensions & Physical Data

Length
35mm
Weight
0.0073kg
Width
Ø 10mm

Safety, Standards & Compliance

Standards and Approvals
UL 248-14, CSA C22.2 No. 248.14

Documents

IPD Product Catalogue V17
