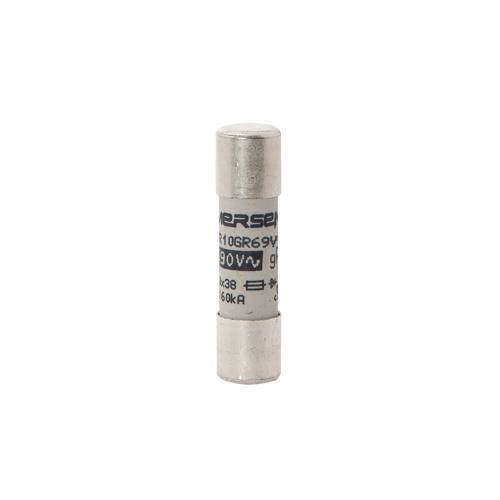

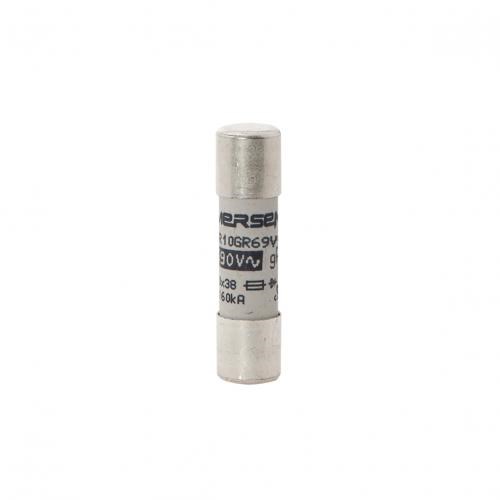

Mersen Q1014567 Semi-Conductor High-Speed Cylindrical Fuse 2A 690VAC gR 10 x 38 Fuse

Product Code: Q1014567

  • Rated for 2A, 690VAC applications
  • High breaking capacity of 160kA
  • Compact size: 10mm dia x 38mm length
  • Low power loss at 1.3W
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
High-speed fuse-link
Brand
Mersen
Series
gR
Application
Semiconductor protection

Electrical

Suitable For
CMS101 base / 10x38 holders
Utilization Category
gR
Breaking Capacity
200 kA AC
Rated Current
2 A
Rated Frequency
50/60 Hz
Rated Voltage
690 V AC
Speed Class
gR

Mechanical

Body Style
Cylindrical
Material
Body: Ceramic, Contact: Silver plated copper
Size Code
10 x 38
Connection/Termination
Ferrule end caps
Fuse Holder
CMS101

Dimensions & Physical Data

Length
38 mm
Weight
0.008 kg (Approx.)
Width
Ø 10 mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-4
