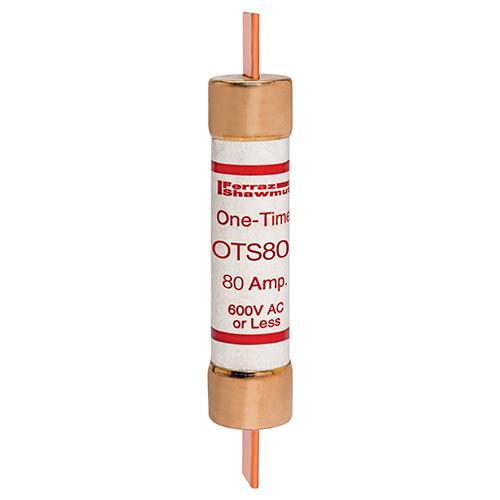

Mersen OTS80 Fast-Acting General Purpose Fuse 80A 600/300VAC/DC Class K5 1.31 in Dia x 7.88 in L Blade Terminal

Product Code: OTS80

  • UL North American fuse rated for 80 A
  • Handles up to 600/300 VAC/VDC
  • High breaking capacity of 50 kA
  • Compact design: 1.31" Dia x 7.88" L
  • Durable poly tube body with blade terminals
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Class K5 Fast - Acting Fuse
Brand
Mersen
Series
OTS
Application
General purpose branch-circuit and equipment protection

Electrical

Utilization Category
Class K5
Breaking Capacity
50kA
Rated Current (In)
80A
Rated Frequency
50/60Hz
Rated Voltage (Ur)
600V AC / 300V DC
Speed Class
Fast acting

Mechanical

Body Style
Blade type
Indicators
without indicator
Mounting
Blade / bolted mounting
Size Code
Class K5 blade
Connection/Termination
Blade terminals

Dimensions & Physical Data

Weight
0.24kg

Safety, Standards & Compliance

Standards and Approvals
UL 248-9; CSA C22.2 No. 248.9
