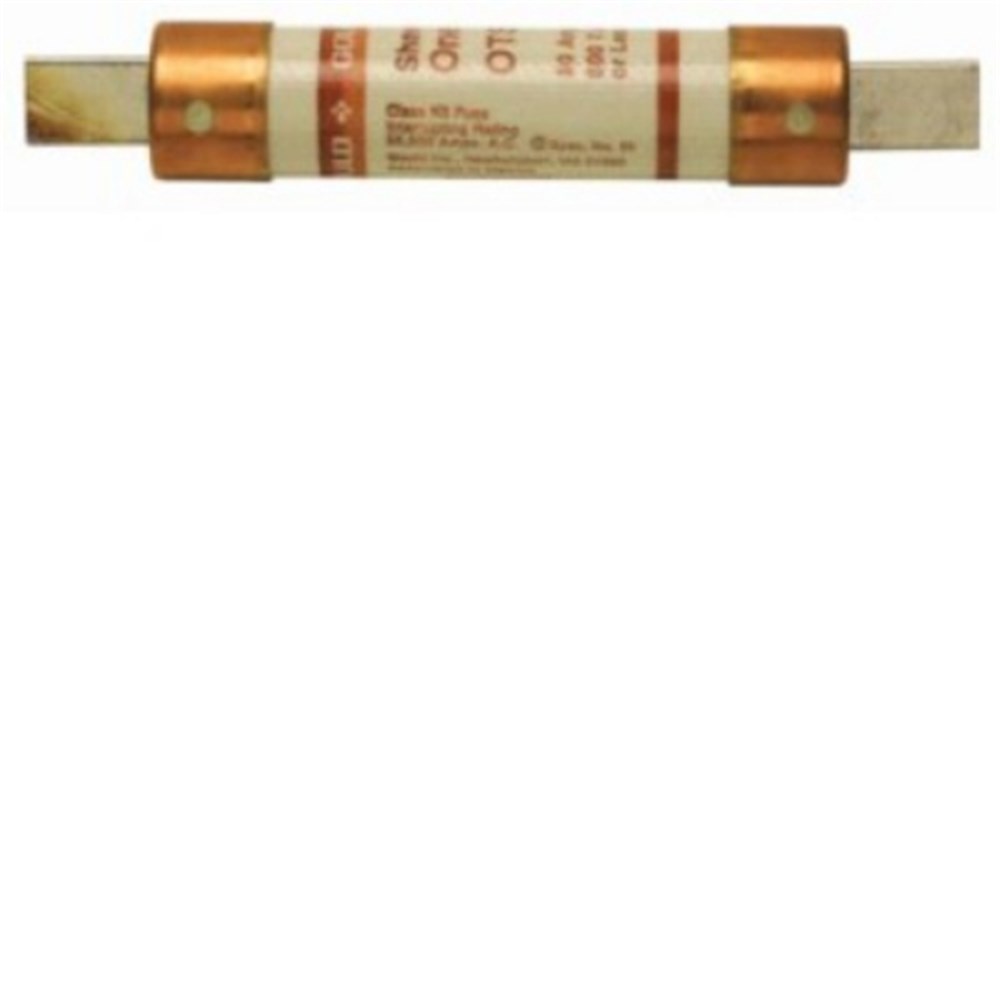

Mersen OTS350 Fast-Acting General Purpose Fuse 350A 600/300VAC/DC Class K5 2.56 in Dia x 11.63 in L Blade Terminal

Product Code: OTS350

  • 350 A current rating for robust performance
  • Operates at 600/300 VAC/VDC voltage
  • Clip mounting for easy installation
  • High breaking capacity of 50 kA
  • Durable poly tube body material
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Class K5 Fast - Acting Fuse
Brand
Mersen
Series
OTS
Application
General purpose branch-circuit and equipment protection

Electrical

Utilization Category
Class K5
Breaking Capacity
50kA
Rated Current (In)
350A
Rated Frequency
50/60Hz
Rated Voltage (Ur)
600V AC / 300V DC
Speed Class
Fast acting

Mechanical

Body Style
Blade type
Indicators
without indicator
Mounting
Blade / bolted mounting
Size Code
Class K5 blade
Connection/Termination
Blade terminals

Dimensions & Physical Data

Weight
1.456kg

Safety, Standards & Compliance

Standards and Approvals
UL 248-9; CSA C22.2 No. 248.9
