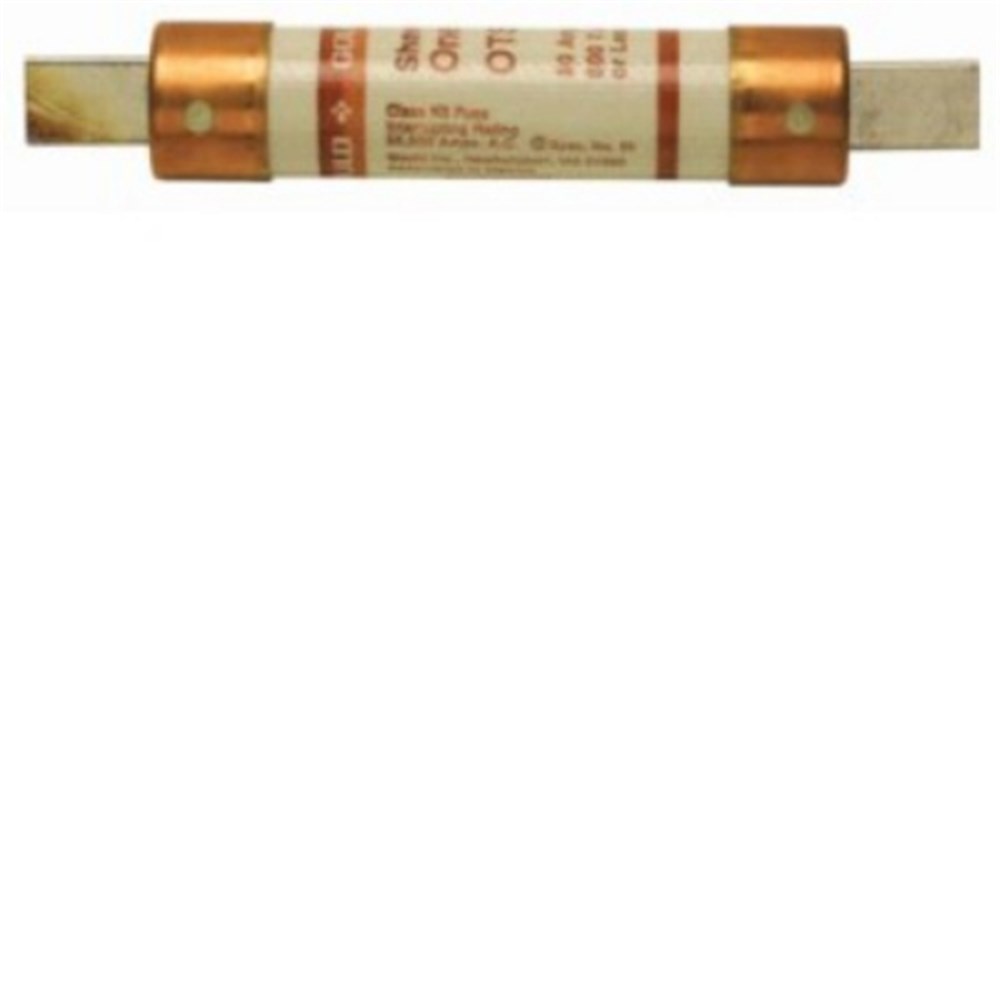

Mersen OTS150 Fast-Acting General Purpose Fuse 150A 600/300VAC/DC Class K5 1.81 in Dia x 9.63 in L Blade Terminal

Product Code: OTS150

  • Rated for 150A, ideal for high current apps
  • Operates at 600/300 VAC/VDC, versatile use
  • High breaking capacity of 50 kA
  • Blade terminal with tin-plated copper
  • Poly Tube body and insulation for durability
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Link
Brand
Mersen
Series
OTS
Application
Residential and small commercial installations

Electrical

Breaking Capacity
50kA AC, 20kA DC
Rated Current (In)
150A
Rated Frequency
50/60Hz
Rated Voltage (Ur)
600V AC / 300V DC
Speed Class
Fast-acting

Mechanical

Body Style
Ferrule
Material
Body: Poly tube, Terminal: Tin-Plated Copper
Mounting
Clip

Dimensions & Physical Data

Length
181mm
Weight
0.24kg (Approx.)
Width
Ø 40mm

Documents

IPD Product Catalogue V17
