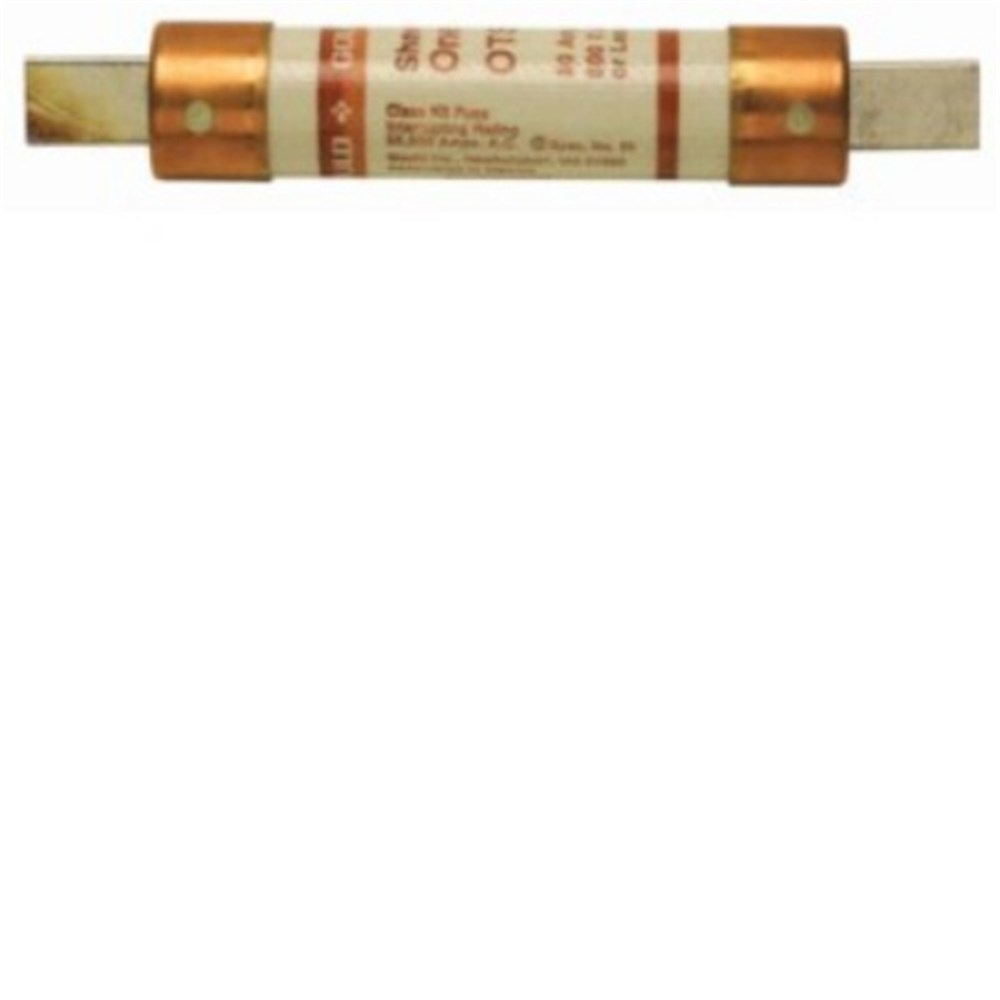

Mersen OTS100 Fast-Acting General Purpose Fuse 100A 600/300VAC/DC Class K5 1.31 in Dia x 7.88 in L Blade Terminal

Product Code: OTS100

  • Rated for 100 A, suitable for high current applications
  • Supports 600/300 VAC/VDC, versatile voltage range
  • Clip mounting for easy installation
  • High breaking capacity of 50 kA
  • Durable poly tube body material
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Link
Brand
Mersen
Series
OTS
Application
Residential and small commercial installations

Electrical

Breaking Capacity
50kA AC, 20kA DC
Rated Current (In)
100A
Rated Frequency
50/60Hz
Rated Voltage (Ur)
600V AC / 300V DC
Speed Class
Fast-acting

Mechanical

Body Style
Ferrule
Material
Body: Poly tube, Terminal: Tin-Plated Copper
Mounting
Clip

Dimensions & Physical Data

Length
181mm
Weight
0.24kg (Approx.)
Width
Ø 40mm

Documents

IPD Product Catalogue V17
